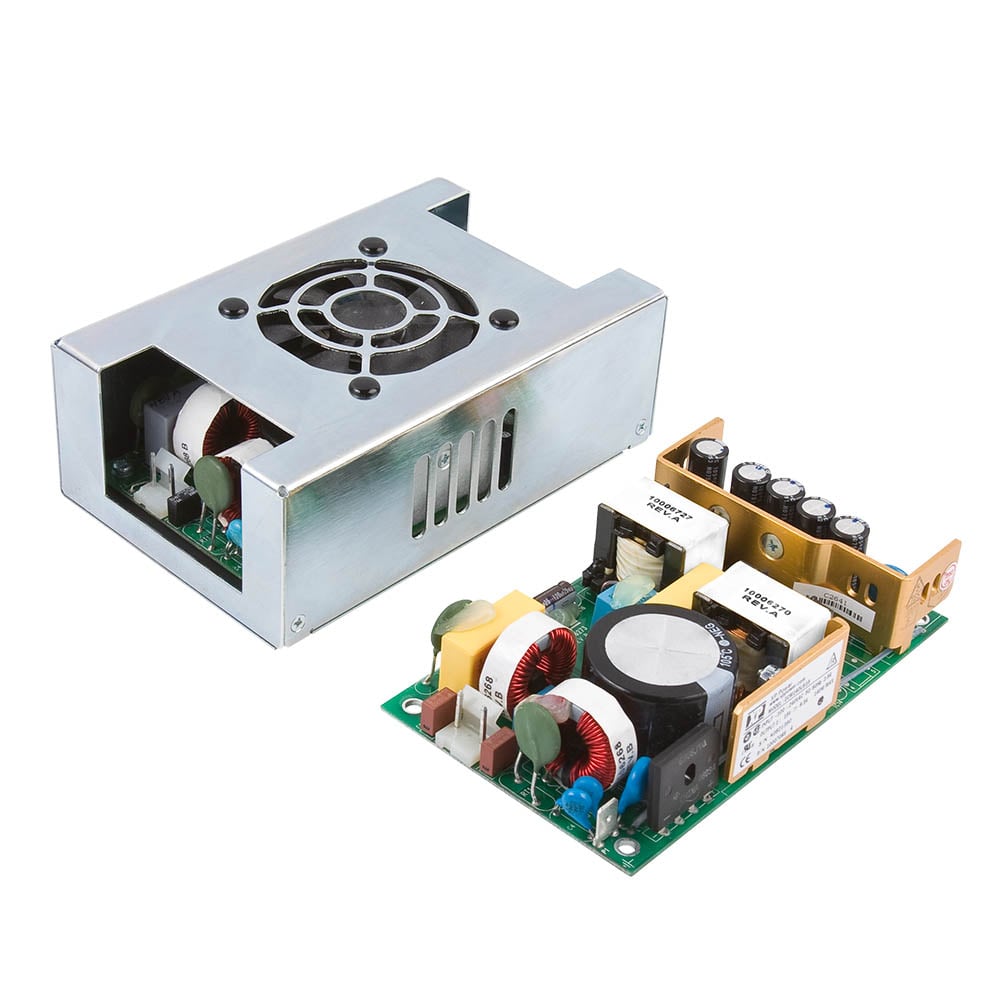

ECM140

140 Watts

  • 120/148 W Convection/Forced cooled Ratings
  • Class I & Class II Construction
  • Remote Sense
  • 5 V Standby Option
  • Remote On/Off & Power OK Signals Option
  • IT, Industrial & Medical Safety Approvals
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ECM140US15 80 to 264 Vac, 120 to 370 Vdc 15 V / 9.3 A
140W Request Sample Stock Check
ECM140US18 80 to 264 Vac, 120 to 370 Vdc 18 V / 7.7 A
140W Request Sample Stock Check
ECM140US24 80 to 264 Vac, 120 to 370 Vdc 24 V / 5.8 A
140W Request Sample Stock Check
ECM140US28 80 to 264 Vac, 120 to 370 Vdc 28 V / 5 A
140W Request Sample Stock Check
ECM140US48 80 to 264 Vac, 120 to 370 Vdc 48 V / 2.9 A
140W Request Sample Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    ECM140: 5.00 x 3.00 x 1.30 in (127.0 x 76.2 x 33.0 mm)
  • Input Voltage:
    80-264 VAC (120-370 VDC), derate output power <90 VAC (See datasheet)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    88% typical
  • Operating Temp:
    0 ?C to +70 ?C derate linearly from +50 °C at 2.5%/?C to 50% load at +70 °C when convection-cooled and from +60 °C at 2.5%/°C to 75% load at +70 °C when forced-cooled. See datasheet
  • Isolation:
    4000 VAC Input to Output 2 x MOPP,
    1500 VAC Input to Ground 1 x MOPP,
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60601-1, EN60950-1
  • US Safety Approvals:
    ANSI/AAMI ES60601-1, CSA22.2 No. 60601-1 per cUL, Including Risk Management, UL60950-1 (UL1604 Class 1 Div 2 ECM140US12)
  • EMC:
    EN55011/22 level B conducted
    EN55011/22 level A radiated

TUV Certificate

UL Certificate

CB Report

Declaration of Conformity
