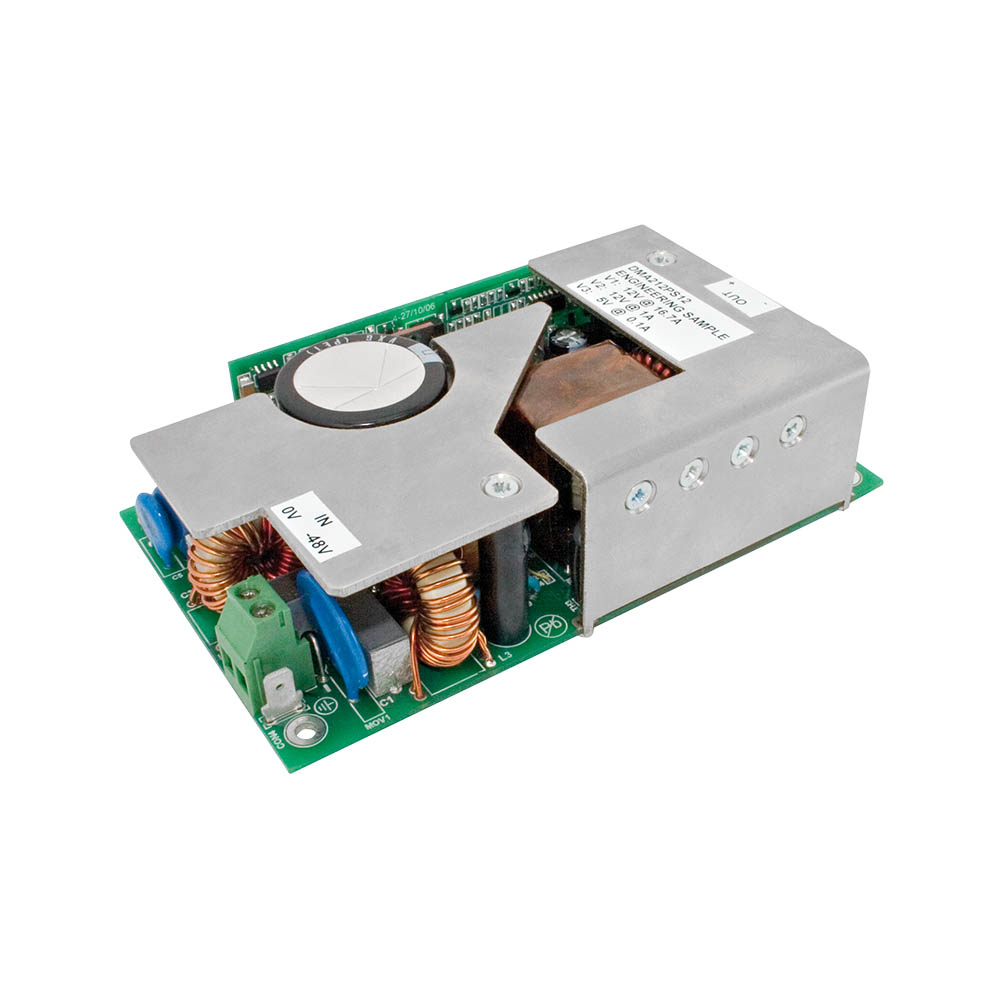

DMA

+ Click To Enlarge

No longer manufactured

×

No longer manufactured

This series is no longer available, however there are now alternative products available that may suit your requirements.

212 Watts

  • Open Frame Telecom DC DC Converter
  • 48 VDC Input
  • ETSI Compliant
  • NEBS Compliant
  • 5 V Standby & 12 V Fan Outputs
  • Remote On/Off & Power Good Signal
  • AC Input Version Available (EMA212)
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
DMA21248S12 48 Vdc nominal 12 V / 16.7 A
212W Request Sample Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    DMA: 5.00 x 3.00 x 1.36 in (127.0 x 76.2 x 32.6 mm)
  • Input Voltage:
    48 VDC nominal (36 - 75 VDC)
  • Efficiency:
    88% typical
  • Operating Temp:
    0 °C to +50 °C with full load, derate
    linearly to 50% load at 70 °C with force
    cooling 10CFM minimum
  • Isolation:
    1500 VDC Input to Output (basic
    insulation), 1000 VDC Input to Ground,
    500 VDC Output to Ground
  • Worldwide Safety Approvals:
    IEC60950-1:2001
  • European Safety Approvals:
    EN60950-1:2006, CE Marked to LVD
  • US Safety Approvals:
    CSA-C22.2 No. 60950-1-03
  • EMC:
    EN61204-3 2000, EN55022 class A
    conducted & radiated, ETSI EN 300 132-2 2003, ETSI 300 386-1 1994, NEBS GR-1089-CORE issue 4
