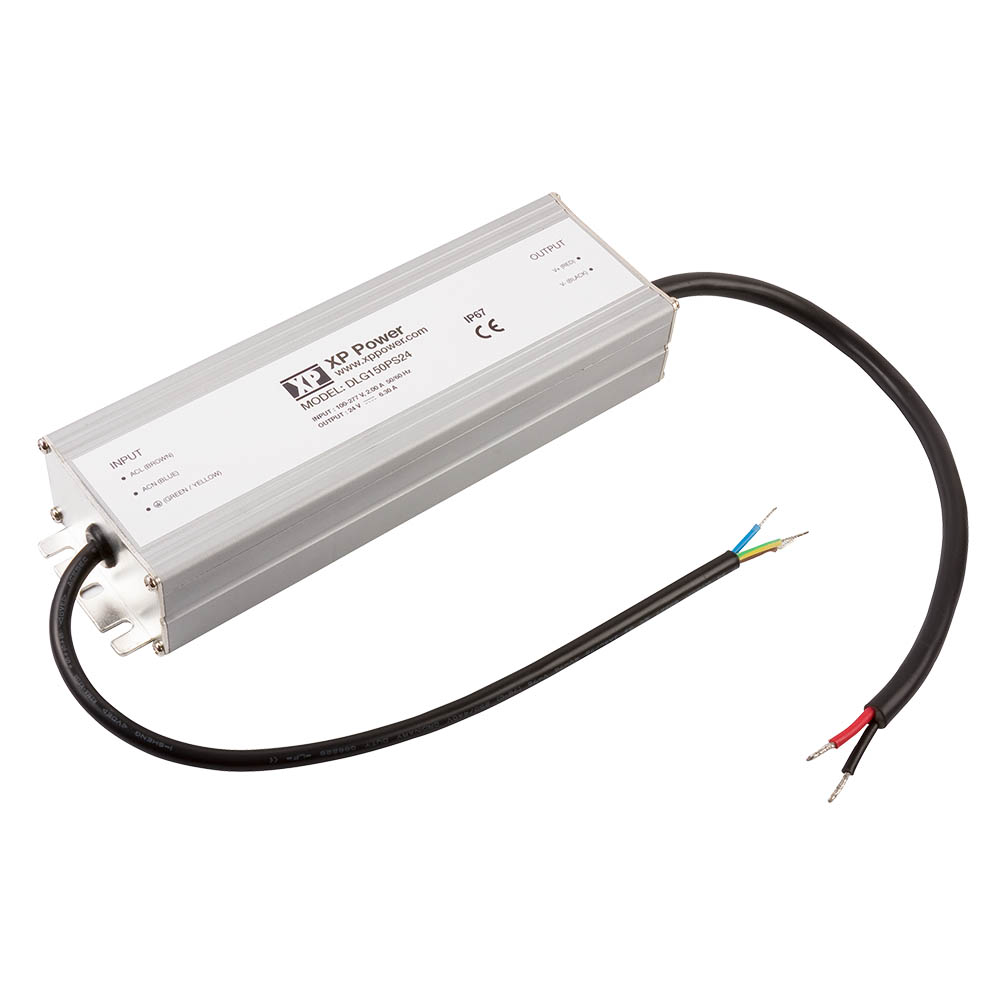

DLG70-150-HV

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

70-150 Watts

  • AC Input LED Driver
  • Constant Current Operation
  • High Power Factor
  • High Efficiency
  • Water Proof to IP67
  • 90-305 VAC Input Voltage Range
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
DLG100PS1400-A 90 to 305 Vac 100W Request Sample Stock Check
DLG100PS700-A 90 to 305 Vac 100W Request Sample Stock Check
DLG100PS800-A 90 to 305 Vac 100W Request Sample Stock Check
DLG150PS1050-A 90 to 305 Vac 150W Request Sample Stock Check
DLG150PS1400-A 90 to 305 Vac 150W Request Sample Stock Check
DLG150PS350-A 90 to 305 Vac 150W Request Sample Stock Check
DLG150PS530-A 90 to 305 Vac 150W Request Sample Stock Check
DLG150PS700-A 90 to 305 Vac 150W Request Sample Stock Check
DLG70PS700-A 90 to 305 Vac 70W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    DLG70/100: 7.80 x 2.24 x 1.46 in (198.0 x 57.0 x 37.0 mm)
    DLG150: 8.90 x 2.68 x 1.54 in (226.0 x 68.0 x 39.0 mm)
  • Input Voltage:
    90-305 VAC, see datasheet
  • Harmonic Currents:
    EN61000-3-2, class A
    EN61000-3-2, class C for loads >80%
  • Efficiency:
    See datasheet
  • Operating Temp:
    -30 °C to +70 °C (see datasheet)
  • Isolation:
    3750 VAC Input to Output
    1880 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN61347, CE Mark
  • US Safety Approvals:
    UL8750
  • EMC:
    EN55015, class B conducted and radiated

Declaration of Conformity

TUV Certificate

UL Certificate

CB Report

Unfortunately there are no 3D models available for this product.
