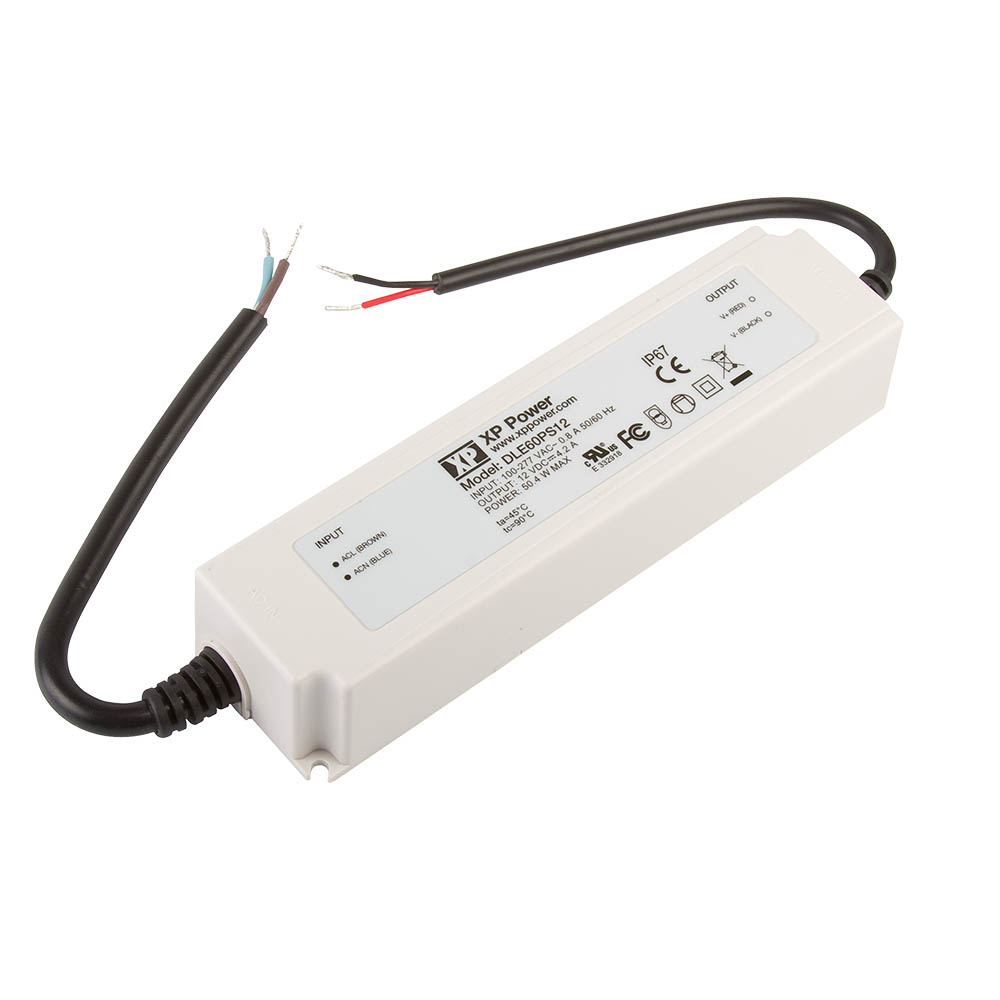

DLE45-60

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

40-60 Watts

  • AC Input LED Driver
  • Constant Voltage/Constant Current Operation
  • Constant Current Dimming Versions
  • High Efficiency
  • Water Proof to IP67
  • Class 2
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
DLE45PS1000-AD 90 to 305 Vac 48 W Request Sample Stock Check
DLE45PS1250-AD 90 to 305 Vac 45 W Request Sample Stock Check
DLE45PS1850-AD 90 to 305 Vac 45 W Request Sample Stock Check
DLE45PS24 90 to 305 Vac 45 W Request Sample Stock Check
DLE45PS36 90 to 305 Vac 45 W Request Sample Stock Check
DLE45PS48 90 to 305 Vac 48 W Request Sample Stock Check
DLE45PS57 90 to 305 Vac 40 W Request Sample Stock Check
DLE45PS700-AD 90 to 305 Vac 40 W Request Sample Stock Check
DLE60PS1050-AD 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS12 90 to 305 Vac 50 W Request Sample Stock Check
DLE60PS1250-AD 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS1650-AD 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS24 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS2500-AD 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS36 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS4200-AD 90 to 305 Vac 50 W Request Sample Stock Check
DLE60PS48 90 to 305 Vac 60 W Request Sample Stock Check
DLE60PS57 90 to 305 Vac 60 W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    DLE45-60: 6.46 x 1.78 x 1.27 in (164.1 x 45.3 x 32.5 mm)
  • Input Voltage:
    90-305 VAC, see datasheet
  • Harmonic Currents:
    EN61000-3-2, class C
  • Efficiency:
    87% typical
  • Operating Temp:
    -20 °C to +50 °C (see datasheet)
  • Isolation:
    3750 VAC Input to Output
  • Worldwide Safety Approvals:
    IEC61347-2-13 used in conjunction with IEC61347-1, IEC60529
  • European Safety Approvals:
    EN61347, CE Mark
  • US Safety Approvals:
    UL8750
  • EMC:
    EN55015, class B conducted and radiated

Declaration of Conformity

TUV Certificate

UL Certificate

CB Certificate

Unfortunately there are no 3D models available for this product.
