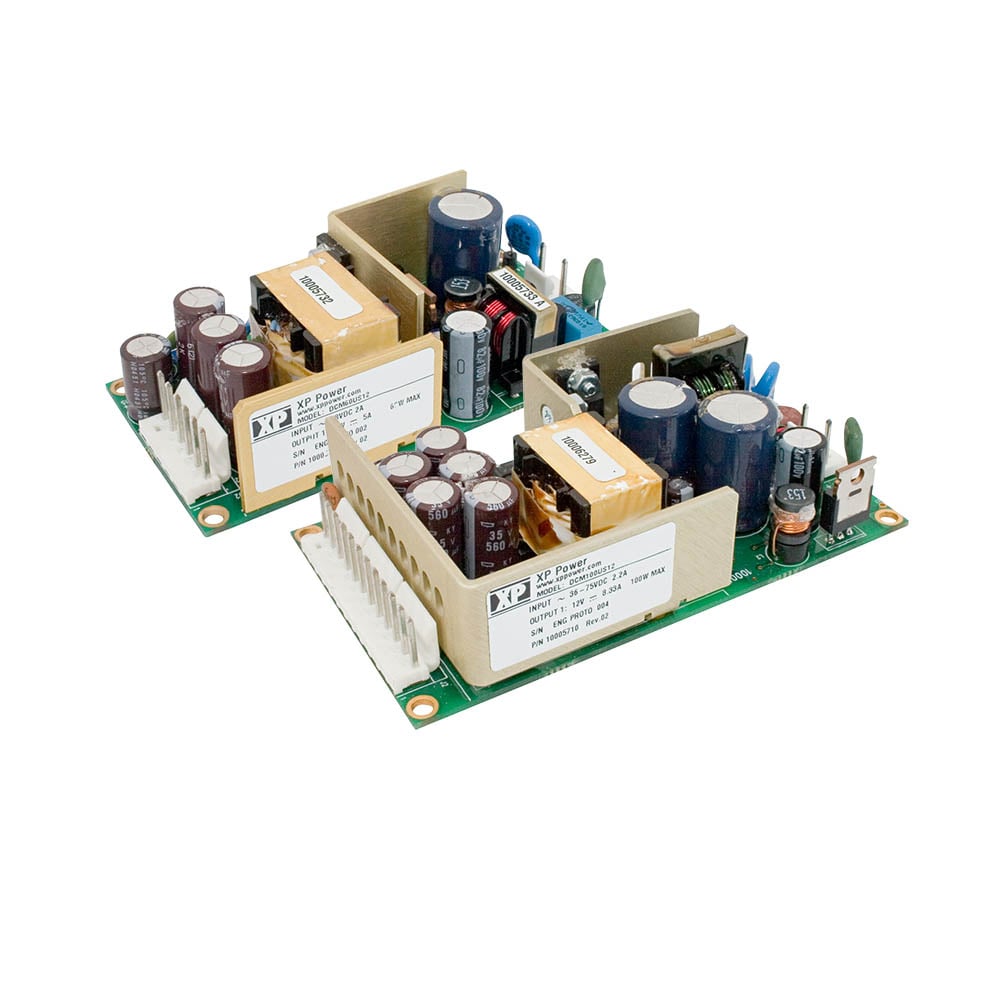

DCM

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

60-100 Watts

  • Open Frame Telecom DCDC Converter
  • 48 VDC Input
  • ETSI Compliant
  • NEBS Compliant
  • Convection-cooled
  • High Power Density in 2 Small Package Sizes
  • Covered Versions Available
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
DCM6048S12 48 Vdc nominal 12 V / 5 A
60W Request Sample Stock Check
DCM10048S12 48 Vdc nominal 12 V / 7.5 A
100W Request Sample Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    DCM60: 4.00 x 2.00 x 1.20 in (101.6 x 50.8 x 30.5 mm)
    DCM100: 4.50 x 2.50 x 1.20 in (114.3 x 63.5 x 30.5 mm)
  • Input Voltage:
    48 VDC nominal (36 - 75 VDC) see datasheet
  • Efficiency:
    85% typical
  • Operating Temp:
    0 °C to +50 °C with full load, derate
    linearly to 50% load at 70 °C convection
    cooled. 0°C to 60°C with full load, derate
    linearly to 75% load at 70 °C with force
    cooling 5CFM minimum
  • Isolation:
    1500 VDC Input to Output (basic
    insulation), 1000 VDC Input to Ground,
    500 VDC Output to Ground.
  • Worldwide Safety Approvals:
    IEC60950-1:2001
  • European Safety Approvals:
    EN60950-1 2001 + A11 2004, CE Marked to LVD
  • US Safety Approvals:
    UL60950-1 (2003), CSA-C22.2 No. 60950-1-03
  • EMC:
    Compliant with EN61204-3 2000,
    EN55022 class A conducted & radiated(see datasheet), ETSI EN 300 132-2 2003, ETSI 300 386-1
    1994, NEBS GR-1089-CORE issue 4

TUV Certificate

UL Certificate

CB Report

Declaration of Conformity

Unfortunately there are no 3D models available for this product.
