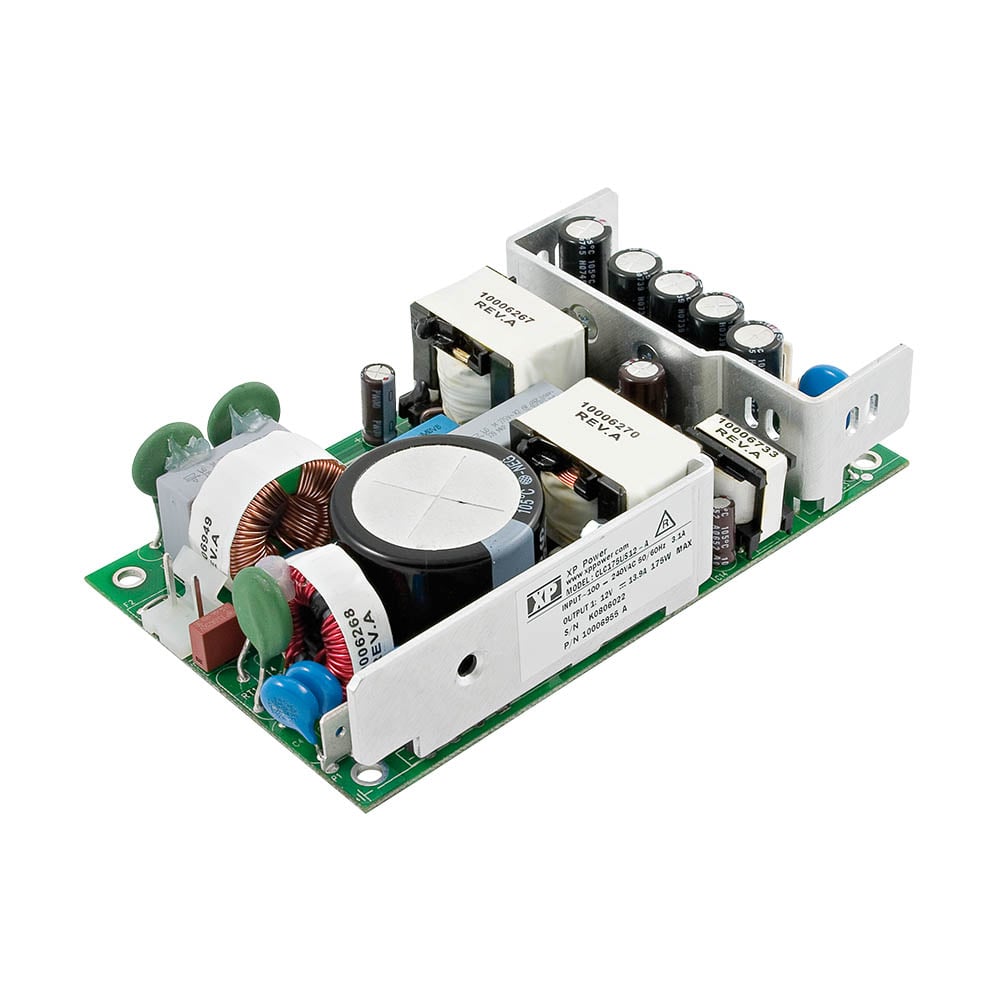

CLC175

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

175 Watts

  • High Efficiency Resonant Topology
  • Medical Safety Approvals ( M Versions)
  • 12 V Fan Output
  • Remote Sense
  • 5V Standby Option
  • Remote On/Off & Power Good Signal Options
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
CLC175US12 85 to 264 Vac 12 V / 13.9 A
175W Request Sample Stock Check
CLC175US12-M 85 to 264 Vac 12 V / 13.9 A
175W Request Sample Stock Check
CLC175US12-MTF 85 to 264 Vac 12 V / 13.9 A
175W Request Sample Stock Check
CLC175US24 85 to 264 Vac 24 V / 6.9 A
175W Request Sample Stock Check
CLC175US24-M 85 to 264 Vac 24 V / 6.9 A
175W Request Sample Stock Check
CLC175US24-MTF 85 to 264 Vac 24 V / 6.9 A
175W Request Sample Stock Check
CLC175US28 85 to 264 Vac 28 V / 6.25 A
175W Request Sample Stock Check
CLC175US28-M 85 to 264 Vac 28 V / 6.25 A
175W Request Sample Stock Check
CLC175US28-MTF 85 to 264 Vac 28 V / 6.25 A
175W Request Sample Stock Check
CLC175US48 85 to 264 Vac 48 V / 3.5 A
175W Request Sample Stock Check
CLC175US48-M 85 to 264 Vac 48 V / 3.5 A
175W Request Sample Stock Check
CLC175US48-MTF 85 to 264 Vac 48 V / 3.5 A
175W Request Sample Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    CLC175: 5.00 x 3.00 x 1.30 in (127.0 x 76.2 x 33.0 mm)
  • Input Voltage:
    85-264 VAC (120-370 VDC), derate output power 10% <90 VAC
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    87% typical
  • Operating Temp:
    0 °C to +70 °C derate linearly from +50 °C at 2.5%/°C to 50% load at +70 °C
  • Isolation:
    3000 VAC Input to Output
    4000 VAC Input to Output (-M) 2 x MOPP
    1500 VAC Input to Ground 1 x MOPP
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60601-1, EN60950-1
  • US Safety Approvals:
    ANSI/AAMI ES60601-1, CSA22.2 No.60601-1 per cUL, Including Risk Management, UL60950-1
  • EMC:
    EN55011/22 level B conducted
    EN55011/22 level A radiated
