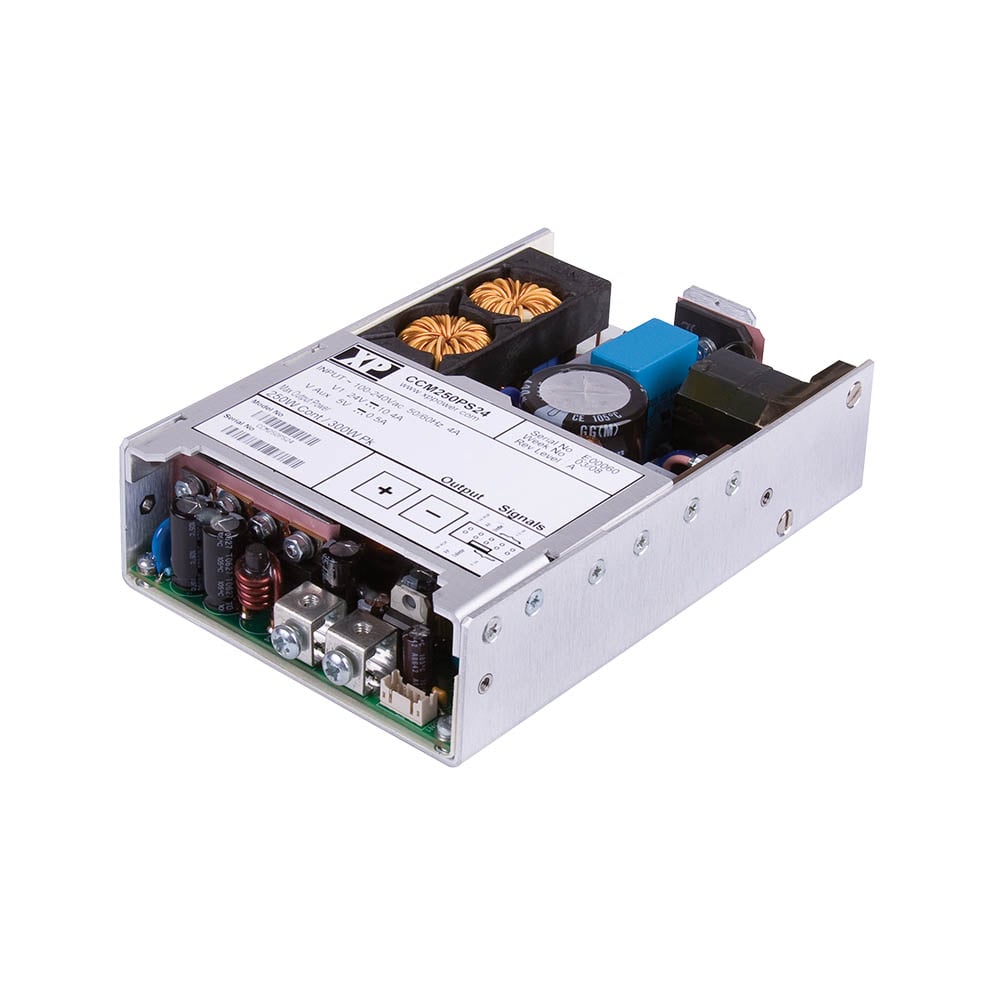

CCM250

+ Click To Enlarge

250 Watts

  • 250 W Convection-cooled
  • 300 W Peak Rating for 500 ms
  • Very High Efficiency up to 95%
  • Class B Conducted & Radiated Emissions
  • 80 - 275 VAC Operation
  • IT, Industrial & Medical Safety Approvals
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
CCM250PS12 80-275 VAC 12 V / 20.8 A
250 W Request Sample Stock Check
CCM250PS15 80-275 VAC 15 V / 16.7 A
250 W Request Sample Stock Check
CCM250PS24 80-275 VAC 24 V / 10.4 A
250 W Request Sample Stock Check
CCM250PS28 80-275 VAC 28 V / 8.9 A
250 W Request Sample Stock Check
CCM250PS36 80-275 VAC 36 V / 6.9 A
250 W Request Sample Stock Check
CCM250PS48 80-275 VAC 48 V / 5.2 A
250 W Request Sample Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    CCM250: 6.00 x 4.00 x 1.54 in (152.4 x 101.6 x 39.1 mm)
  • Input Voltage:
    80-275 VAC (see datasheet)
  • Harmonic Currents:
    EN61000-3-2, class A,
    EN61000-3-2, class C for loads ?40%
  • Efficiency:
    Up to 95%
  • Operating Temp:
    -20 ?C to +70 ?C derate linearly from +50 °C
    at 2.5%/°C to 50% load at +70 °C. See datasheet for thermal considerations. (-40 °C consult sales)
  • Isolation:
    4000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • Worldwide Safety Approvals:
    IEC60950-1, IEC60601-1, IEC61010-1
  • European Safety Approvals:
    EN60950-1, EN60601-1
  • US Safety Approvals:
    CSA 22.2 No. 60950-1, UL60950-1, CSA 22.2 No. 60601-1, UL60601-1
  • EMC:
    EN55011/22 level B conducted
    EN55011/22 level B radiated
    RTCA D0160D 21.4 Cat. M radiated
    MIL-STD 461D-F, CE102

Declaration of Conformity

TUV Certificate

UL Certificate

CB Report
