Product
Product

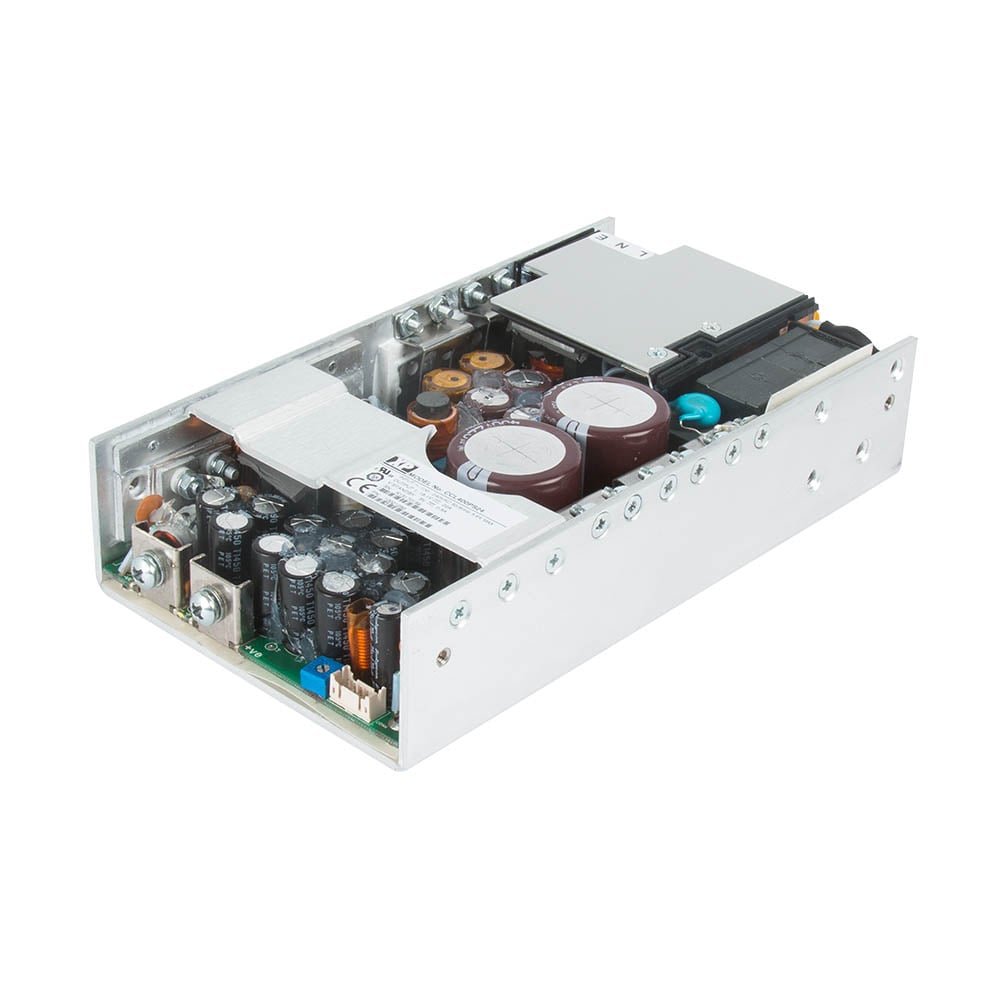

CCL400
+ Click To Enlarge
Tweet
Video
400 Watts
400 W Convection-cooled
Conduction Cooling For Higher Ambient Operation
94% Efficiency
85 VAC to 264 VAC Input
5V Standby
<1W Standby Power
IT & Medical Safety Approvals
Power Fail & Inhibit Signals
3 Year Warranty
Models
Datasheets
Specifications
Approval Documents
3D Models
Model Name
Input
Output
Power
CCL400PS12
80 to 264 Vac
12 V / 33.3 A
400W
Request Sample
Stock Check
CCL400PS24
80 to 264 Vac
24 V / 16.6 A
400W
Request Sample
Stock Check
CCL400PS30
80 to 264 Vac
30 V / 13.3 A
400W
Request Sample
Stock Check
CCL400PS48
80 to 264 Vac
48 V / 8.3 A
400W
Request Sample
Stock Check
Short Form Datasheet
Short Form Datasheet
Dimensions:
CCL: 7.12 x 3.95 x 1.57 in (180.9 x 100.3 x 39.9 mm)
Input Voltage:
85-264 VAC (see datasheet)
No Load Input Power:
1 W max
Harmonic Currents:
EN61000-3-2, class A
Efficiency:
93-94%
Operating Temp:
-40 °C to +70 °C. Refer to derating curves
Isolation:
4000 VAC Input to Output, 2 x MOPP
1500 VAC Input to Ground 1 x MOPP
500 VAC Output to Ground
Worldwide Safety Approvals:
IEC60950-1 Ed 2, IEC60601-1 Ed 3.1 Including Risk Management
European Safety Approvals:
EN60950-1, EN60601-1, CE Mark
US Safety Approvals:
UL60950-1, CSA C22.2 No. 60601-1:08, ANSI/AAMI ES60601-1
EMC:
EN55022, Level B conducted and Level A radiated (Level B see datasheet)
CB Report
CB Report
TUV Certificate
TUV Certificate
UL Certificate
UL Certificate
Declaration of Conformity - CCL400
Declaration of Conformity - CCL400
3D Models
CCL400 IGES Model
CCL400 STEP Model
CCL400 - C IGES Model
CCL400 - C STEP Model
