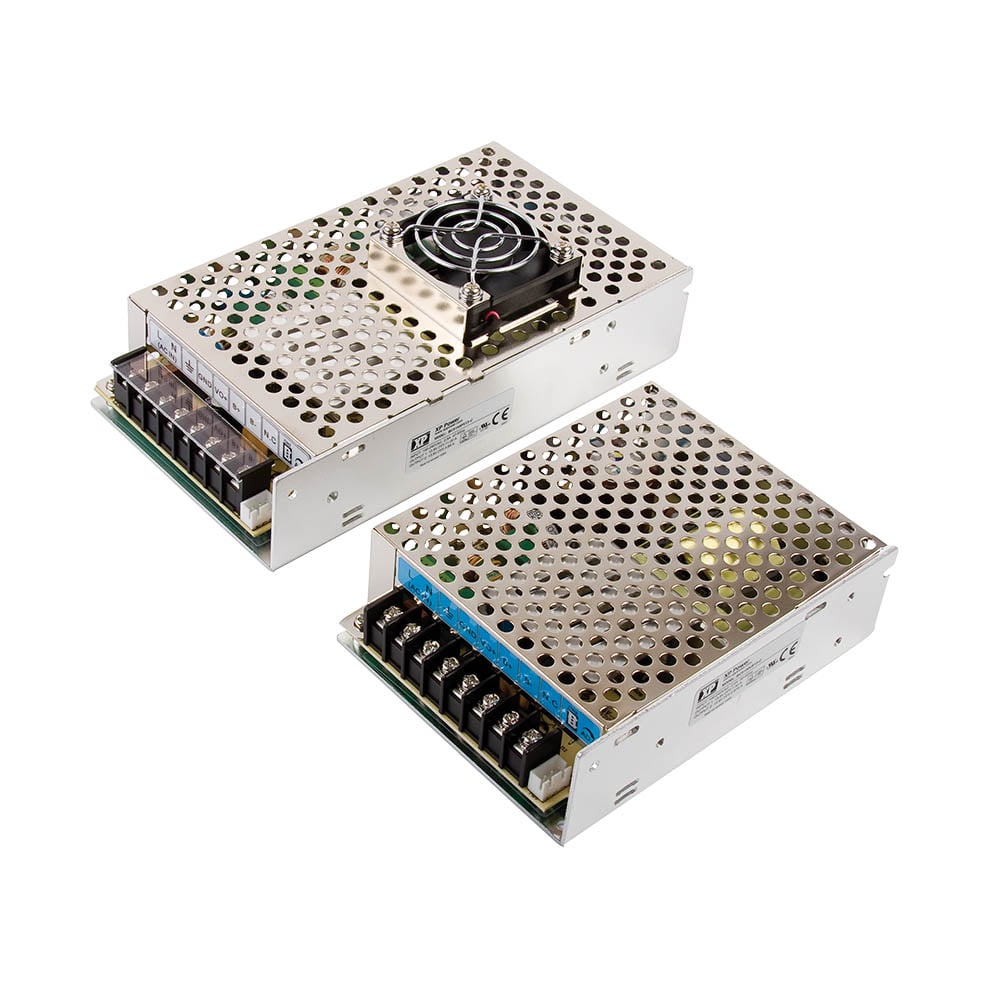

BCS75-155

BCS75-155

+ Click To Enlarge

No longer manufactured

×

No longer manufactured

This series is no longer available, however there are now alternative products available that may suit your requirements.

75-155 Watts

  • DC Standby System
  • Battery Charging Output
  • Optional 5 V, 3 A Supply
  • Low Battery Disconnect
  • AC OK and Battery Low Alarms
  • Battery Overload & Reverse Polarity Protection
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
BCS100US13-C 90 to 264 Vac 13.8 V / 7.3 A
13.8 V / 2.8 A
100W Request Sample Stock Check
BCS100US13-CA 90 to 264 Vac 13.8 V / 6.2 A
13.8 V / 2.8 A
5 V / 3 A
100W Request Sample Stock Check
BCS100US27-C 90 to 264 Vac 27.6 V / 3.65 A
27.6 V / 1.7 A
100W Request Sample Stock Check
BCS100US27-CA 90 to 264 Vac 27.6 V / 3.1 A
27.6 V / 1.7 A
5 V / 3 A
100W Request Sample Stock Check
BCS155PS13-C 90 to 264 Vac 13.8 V / 11.2 A
13.8 V / 3.88 A
155W Request Sample Stock Check
BCS155PS13-CA 90 to 264 Vac 13.8 V / 10.1 A
13.8 V / 3.88 A
5 V / 3 A
155W Request Sample Stock Check
BCS155PS27-C 90 to 264 Vac 27.6 V / 5.6 A
27.6 V / 2.1 A
155W Request Sample Stock Check
BCS155PS27-CA 90 to 264 Vac 27.6 V / 5.1 A
27.6 V / 2.1 A
5 V / 3 A
155W Request Sample Stock Check
BCS75US13-C 90 to 264 Vac 13.8 V / 5.5 A
13.8 V / 1.95 A
75W Request Sample Stock Check
BCS75US13-CA 90 to 264 Vac 13.8 V / 4.4 A
13.8 V / 1.95 A
5 V / 3 A
75W Request Sample Stock Check
BCS75US27-C 90 to 264 Vac 27.6 V / 2.75 A
27.6 V / 1.1 A
75W Request Sample Stock Check
BCS75US27-CA 90 to 264 Vac 27.6 V / 2.2 A
27.6 V / 1.1 A
5 V / 3 A
75W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    BCS: 4.8 x 3.74 x 1.33 in (123.0 x 96.0 x 34.0 mm) ,BCS-C: 5.09 x 13.83 x 1.47 in 129.5 x 97.5 x 37.5 mm)
  • Input Voltage:
    90-264 VAC (120-370 VDC)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    86% typical
  • Operating Temp:
    -20 °C to +70 °C. Refer to derating curves
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1
  • EMC:
    EN55022, Level B conducted and radiated

UL Certificate

Declaration of Conformity - BCS75-155

TUV Certificate - BCS75-100

TUV Certificate - BCS155

TUV Certificate - BCS

CB Certificate

CB Certificate - BCS75-100

CB Certificate - BCS155

Unfortunately there are no 3D models available for this product.
