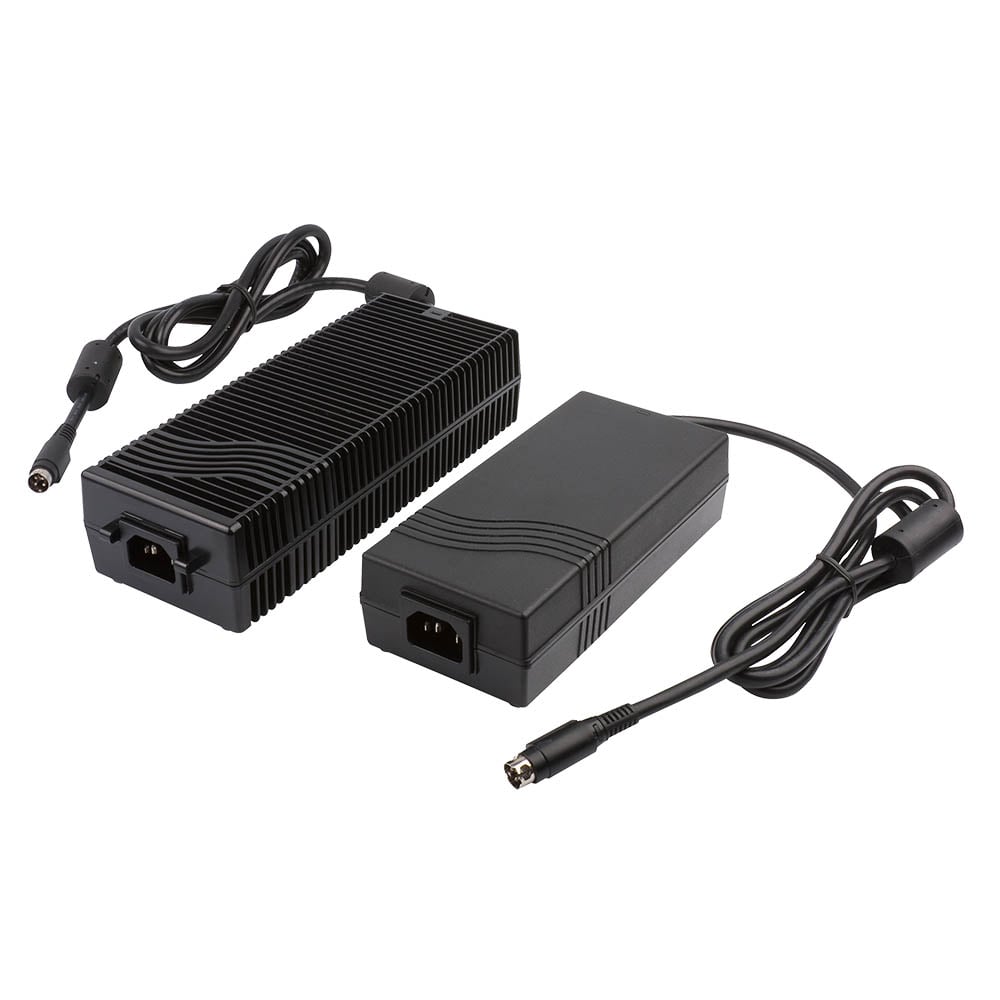

AMM

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

60-150 Watts

  • CEC2008 & EISA2007 Compliant
  • Worldwide Medical Approvals
  • Class I
  • High Power Density
  • High Efficiency
  • Operating Temperature up to +60 °C
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AMM90PS05 80 to 264 Vac 5 V / 12 A
60W Request Sample Stock Check
AMM90PS06 80 to 264 Vac 6 V / 10 A
60W Request Sample Stock Check
AMM90PS09 80 to 264 Vac 9 V / 7.78 A
70W Request Sample Stock Check
AMM90PS12 80 to 264 Vac 12 V / 6.67 A
80W Request Sample Stock Check
AMM90PS13 80 to 264 Vac 13 V / 6.3 A
85W Request Sample Stock Check
AMM90PS15 80 to 264 Vac 15 V / 5.67 A
85W Request Sample Stock Check
AMM90PS18 80 to 264 Vac 18 V / 5 A
90W Request Sample Stock Check
AMM90PS19 80 to 264 Vac 19 V / 4.74 A
90W Request Sample Stock Check
AMM90PS24 80 to 264 Vac 24 V / 3.75 A
90W Request Sample Stock Check
AMM90PS30 80 to 264 Vac 30 V / 3 A
90W Request Sample Stock Check
AMM90PS48 80 to 264 Vac 48 V / 1.87 A
90W Request Sample Stock Check
AMM120PS12 80 to 264 Vac 12 V / 8 A
96W Request Sample Stock Check
AMM120PS15 80 to 264 Vac 15 V / 7 A
105W Request Sample Stock Check
AMM120PS18 80 to 264 Vac 18 V / 6.67 A
120W Request Sample Stock Check
AMM120PS19 80 to 264 Vac 19 V / 6.32 A
120W Request Sample Stock Check
AMM120PS20 80 to 264 Vac 20 V / 6 A
120W Request Sample Stock Check
AMM120PS24 80 to 264 Vac 24 V / 5 A
120W Request Sample Stock Check
AMM120PS30 80 to 264 Vac 30 V / 4 A
120W Request Sample Stock Check
AMM120PS36 80 to 264 Vac 36 V / 3.34 A
120W Request Sample Stock Check
AMM120PS48 80 to 264 Vac 48 V / 2.5 A
120W Request Sample Stock Check
AMM150PS12 80 to 264 Vac 12 V / 11 A
132W Request Sample Stock Check
AMM150PS15 80 to 264 Vac 15 V / 9.6 A
144W Request Sample Stock Check
AMM150PS19 80 to 264 Vac 19 V / 7.9 A
150W Request Sample Stock Check
AMM150PS24 80 to 264 Vac 24 V / 6.25 A
150W Request Sample Stock Check
AMM150PS27 80 to 264 Vac 27 V / 5.56 A
150W Request Sample Stock Check
AMM150PS48 80 to 264 Vac 48 V / 3.13 A
150W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AMM90:5.12 x 3.00 x 1.72 in (130.0 x 76.2 x 43.7 mm)
    AMM120:6.30 x 3.00 x 1.72 in (160.0 x 76.2 x 43.7 mm)
    AMM150:8.17 x 3.23 x 1.96 in (207.6 x 82.0 x 49.7 mm)
  • Input Voltage:
    90W: 80-264 VAC, derate output power 10% <90 VAC & 15% <85 VAC,
    120/150W: 80-264 VAC, derate output power 15% <90 VAC & 20% <85 VAC
  • No Load Input Power:
    <0.5 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    85% typical
  • Operating Temp:
    0 °C to +60 °C, derate linearly from 100% power at +40 °C to 50% power at +60 °C
  • Isolation:
    4000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60601-1, CSA22.2 No. 601-1 per cUL
  • EMC:
    EN55022/FCC/VCCI, Class B conducted
    EN55022/FCC/VCCI, Class B radiated

Declaration of Conformity

CB Report

TUV Certificate - AMM90C2

TUV Certificate - AMM120C2

TUV Certificate - AMM150C2

TUV Certificate

TUV Certificate - AMM90

TUV Certificate - AMM120

TUV Certificate - AMM150

Unfortunately there are no 3D models available for this product.
