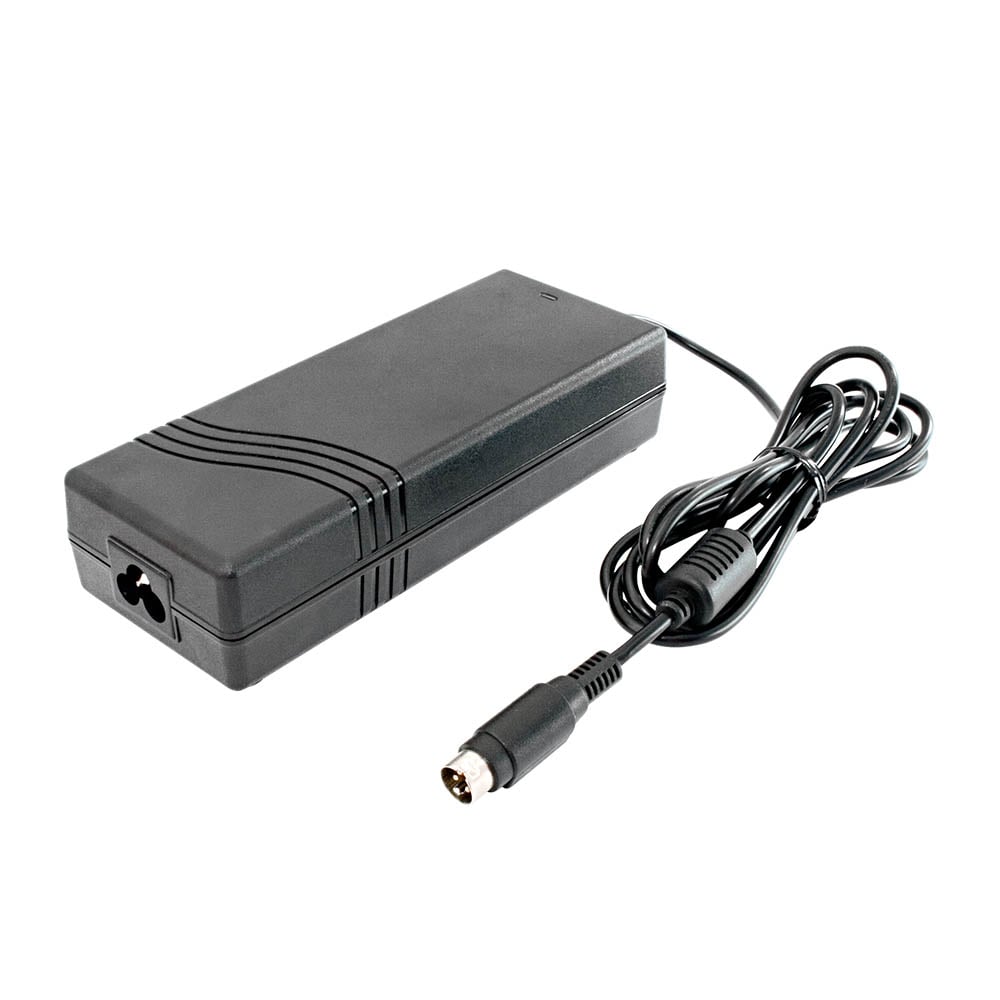

AML120

+ Click To Enlarge

No longer manufactured

×

No longer manufactured

This series is no longer available, however there are now alternative products available that may suit your requirements.

105-120 Watts

  • Energy Star Level V ≥18 V
  • CEC 2008 & EISA 2007 Compliant ≥15V
  • High Power Density
  • Single Outputs from 15 V to 48 V
  • High Efficiency
  • 0 °C to +70 °C Operating Temperature
  • Non standard Connectors Available
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AML120PS15 90 to 264 Vac 15 V / 7 A
105W Request Sample Stock Check
AML120PS18 90 to 264 Vac 18 V / 6.67 A
120W Request Sample Stock Check
AML120PS19 90 to 264 Vac 19 V / 6.32 A
120W Request Sample Stock Check
AML120PS20 90 to 264 Vac 20 V / 6 A
120W Request Sample Stock Check
AML120PS24 90 to 264 Vac 24 V / 5 A
120W Request Sample Stock Check
AML120PS30 90 to 264 Vac 30 V / 4 A
120W Request Sample Stock Check
AML120PS36 90 to 264 Vac 36 V / 3.34 A
120W Request Sample Stock Check
AML120PS48 90 to 264 Vac 48 V / 2.5 A
120W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AML120: 6.58 x 2.56 x 1.46 in (167.0 x 2.56 x 1.46 mm)
  • Input Voltage:
    90-264 VAC
  • No Load Input Power:
    <0.5 W
  • Harmonic Currents:
    EN61000-3-2
  • Efficiency:
    87% typical
  • Operating Temp:
    0 °C to +70 °C, derate from 100% power at +50 °C to 60% power at +70 °C
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    Output 0 V is electrically connected to Input Ground
  • European Safety Approvals:
    EN60950, CE Mark
  • US Safety Approvals:
    UL60950, CSA22.2 No. 60950 per cUL
  • EMC:
    EN55022/FCC/VCCI, Class B conducted
    EN55022/FCC/VCCI, Class B radiated

Declaration of Conformity

UL Certificate
