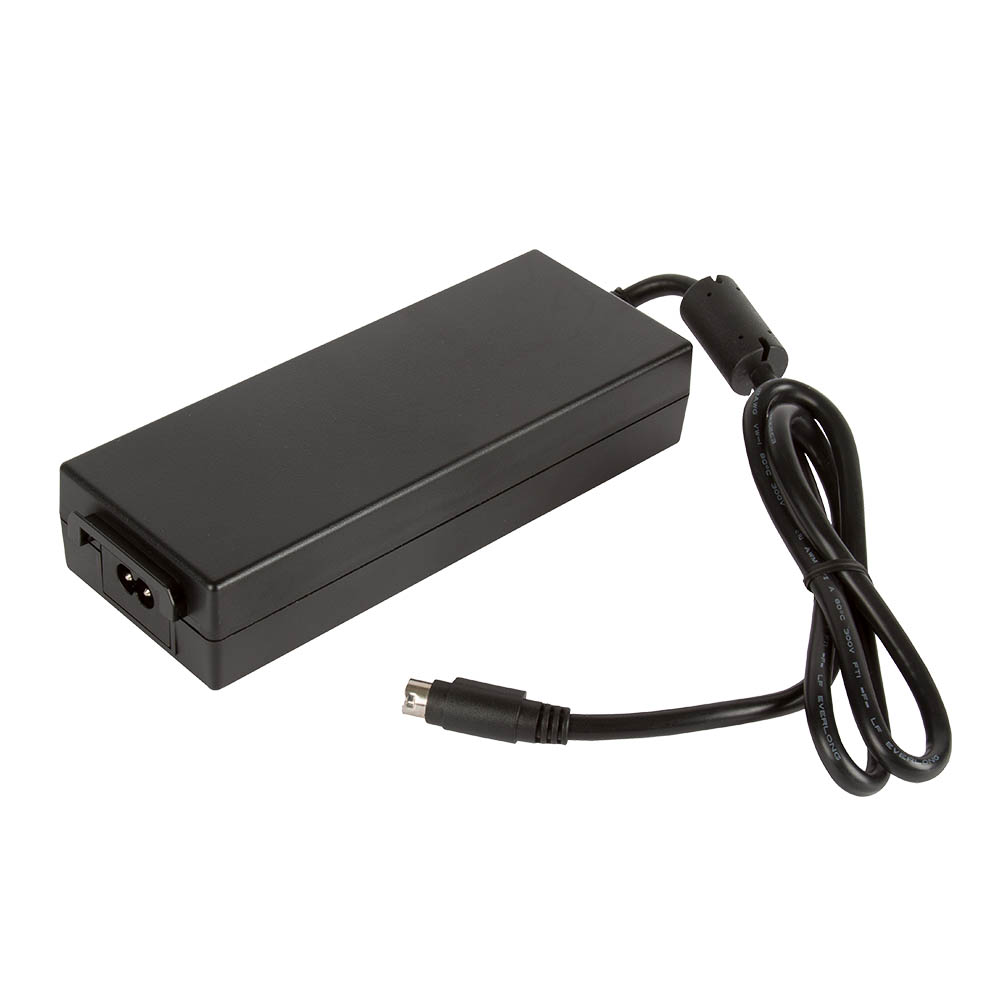

ALM150

ALM150

+ Click To Enlarge

150 Watts

  • Medical & IT Safety Approvals
  • Energy Efficiency Level VI & EU CoC Tier 2 Compliant
  • 4th Edition Medical EMC
  • IP32 Environmental Rating
  • Class I and Class II Versions
  • <0.15W Standby Power/li>
  • 0 °C to 60 °C Operation
  • Low Earth Leakage Current
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ALM150PS12 80-264VAC 12 V / 12.5 A
150W Request Sample Stock Check
ALM150PS15 80-264VAC 15 V / 10 A
150W Request Sample Stock Check
ALM150PS19 80-264VAC 7.9 V / 19 A
150W Request Sample Stock Check
ALM150PS24 80-264VAC 24 V / 6.2 A
150W Request Sample Stock Check
ALM150PS48 80-264VAC 48 V / 3.1 A
150W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    ALM150: 7.323 x 2.843 x 1.496” (186.0 x 72.0 x 38.0 mm)
  • Input Voltage:
    80-264 VAC, see datasheet
  • No Load Input Power:
    0.15W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    93%, see datasheet
  • Operating Temp:
    0 to +60°C, derate from 100% load at 40 °C to 30% load at 60 °C
  • Isolation:
    Input to Output: 4000VAC, 2 x MOPP
    Input to Ground: 1500VAC, 1 x MOPP (class I versions only)
    Output to Ground: 500VAC, class I versions only
  • Worldwide Safety Approvals:
    IEC60950-1, IEC62368-1, IEC60601-1/IEC60601-1-11 (see datasheet)
  • European Safety Approvals:
    EN62368-1, EN60601-1/EN60601-1-11
  • US Safety Approvals:
    UL62368-1, ANSI/AAMI ES 60601-1/ANSI/AAMI HA60601-1-11
  • Other Safety Approvals:
    CSA C22.2 No. 60601/CAN/CSA-C22.2 No.60601-1-11, CCC, PSE, KC & RCM
  • EMC:
    Conducted & Radiated: EN55032, Level B

CB Certificate

TUV Certificate

Declaration of Conformity

UL Certificate

Unfortunately there are no 3D models available for this product.
