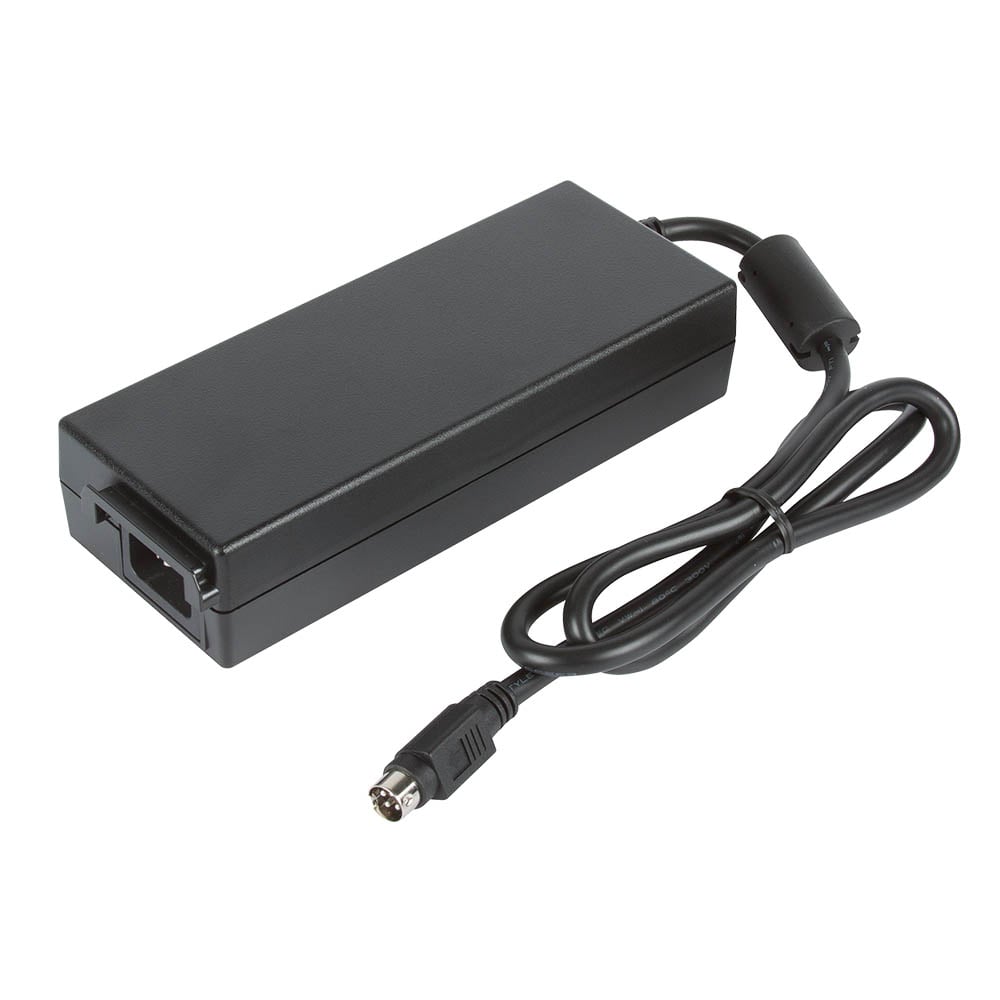

ALM120

+ Click To Enlarge

120 Watts

  • Medical & IT Safety Approvals
  • Energy Efficiency Level VI & EU CoC Tier 2 Compliant
  • 4th Edition Medical EMC
  • IP32 Environmental Rating
  • Class I and Class II Versions
  • <li<0.15>
  • 0 °C to 60 °C Operation
  • Low Earth Leakage Current
  • 3 Year Warrant
  • </li<0.15>
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ALM120PS12 80 to 264 Vac 12 V / 10 A
120W Request Sample Stock Check
ALM120PS15 80 to 264 Vac 15 V / 8 A
120W Request Sample Stock Check
ALM120PS19 80 to 264 Vac 19 V / 6.32 A
120W Request Sample Stock Check
ALM120PS24 80 to 264 Vac 24 V / 5 A
120W Request Sample Stock Check

Shortform Datasheet

Short Form Datasheet

  • Dimensions:
    ALM120: 6.732 x 2.677 x 1.496” (171.0 x 68.0 x 38.0 mm)
  • Input Voltage:
    80 to 264 VAC (19 & 24 V models: Derate linearly from 100% load at 90 VAC
    to 80% load at 80 VAC, 300 VAC/5 s maximum.
    12 & 15 V models: Derate linearly from 100% load at 100
    VAC to 80% load at 80 VAC, 300 VAC/5 s maximum.)
  • No Load Input Power:
    0.15 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    93% (see datasheet)
  • Operating Temp:
    0 to +60 °C, derate from 100% load at 40 °C to 30% load at 60 °C
  • Isolation:
    Input to Output: 4000 Vac, 2 x MOPP
    Input to Ground: 1500 Vac, 1 x MOPP (Class I versions only)
    Output to Ground: 500 Vac, Class I versions only
  • Worldwide Safety Approvals:
    IEC60950-1, IEC62368-1, IEC60601-1
  • European Safety Approvals:
    EN62368-1, EN60601-1
  • US Safety Approvals:
    UL60950-1, ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601
  • Other Safety Approvals:
    LVD, CCC, PSE, KC & RCM
  • EMC:
    EN55022, Level B, Conducted & Radiated

Declaration of Conformity

UL Certificate

CB Certificate IT

CB Certificate Medical

TUV Certificate Medical

Unfortunately there are no 3D models available for this product.
