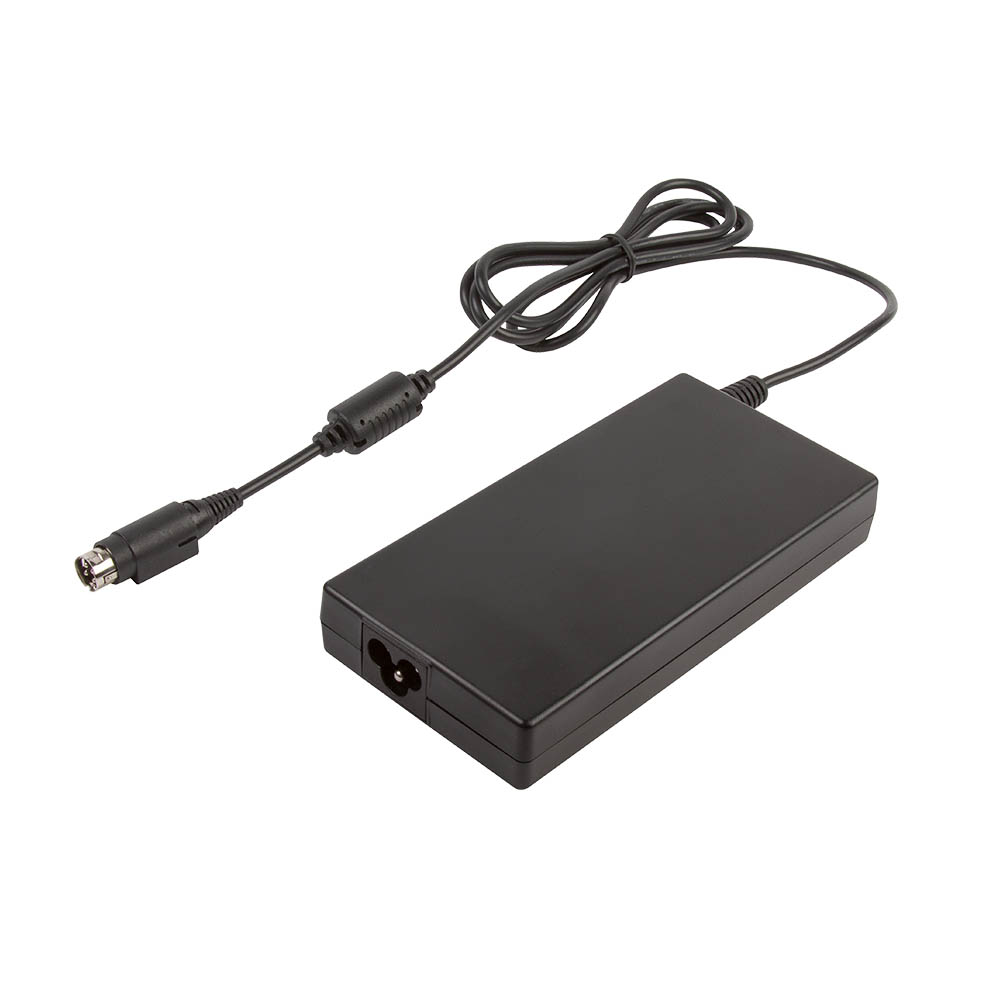

AJM90

+ Click To Enlarge

90 Watts

  • Energy Efficiency Level VI
  • Medical and ITE Safety Approvals
  • 4th Edition Medical EMC
  • Class I and Class II Versions
  • <0.21 W Standby Power
  • 0 °C to 60 °C Operation
  • Low Earth Leakage Current
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AJM90PS12 80 to 264 Vac 12 V / 7.5 A
90 W Request Sample Stock Check
AJM90PS18 80 to 264 Vac 18 V / 5 A
90 W Request Sample Stock Check
AJM90PS19 80 to 264 Vac 19 V / 4.74 A
90 W Request Sample Stock Check
AJM90PS24 80 to 264 Vdc 24 V / 3.75 A
90 W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AJM90: 5.51 x 2.8 x 0.87” (140.0 x 71.0 x 22.0 mm)
  • Input Voltage:
    85-264 VAC, Derate output power below 90 VAC to 90% at 85 VAC and 85% at 80 VAC
  • No Load Input Power:
    0.21 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    88-90%
  • Operating Temp:
    0 °C to +60 °C, Derate from 100% load at 40 °C to 50% load at 60 °C
  • Isolation:
    4000 VAC Input to Output, 2 x MOPP
    1500 VAC Input to Ground, 1 x MOPP (Class I versions only)
    500 VAC Output to Ground, Class I versions only
  • Worldwide Safety Approvals:
    IEC60601-1, IEC60950-1
  • European Safety Approvals:
    EN60601-1, EN60950-1
  • US Safety Approvals:
    UL60950-1, CSA C22.2 No. 60601, ANSI/AAMI ES 60601-1
  • EMC:
    EN55011, Level B, Conducted & Radiated

CB Certificate - AJM90 C1

CB Certificate - AJM90 C2

CB Certificate - AJM90 ITE

CB Certificate - AJM90

Declaration of Conformity - AJM90 C1

TUV Certificate - AJM90 C1

TUV Certificate - AJM90 C2

TUV Certificate - AJM90

Declaration of Conformity - AJM90 C2

Declaration of Conformity - AJM90 C1 & C2

Unfortunately there are no 3D models available for this product.
