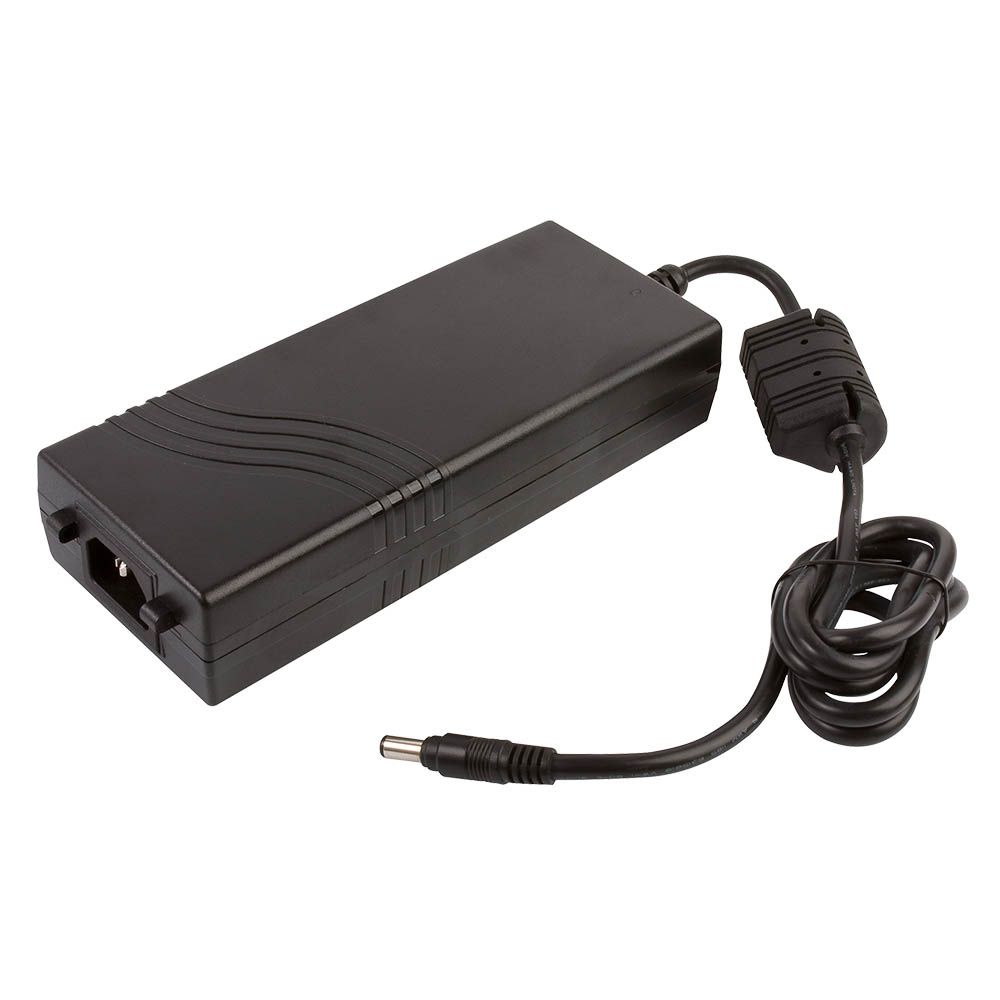

AFM120

+ Click To Enlarge

120 Watts

  • Energy Efficiency Level V
  • CEC2008 & EISA2007 Compliant
  • IT & Medical Approvals
  • High Efficiency
  • 0 °C to +70 °C Operating Temperature
  • Optional IEC320 C6 Inlet
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AFM120PS12 80 to 264 Vac 12 V / 8.3 A
120W Request Sample Stock Check
AFM120PS15 80 to 264 Vac 15 V / 6.66 A
120W Request Sample Stock Check
AFM120PS18 80 to 264 Vac 18 V / 5.55 A
120W Request Sample Stock Check
AFM120PS24 80 to 264 Vac 24 V / 5 A
120W Request Sample Stock Check
AFM120PS48 80 to 264 Vac 48 V / 2.5 A
120W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AFM120: 6.79 x 2.79 x 1.40 in (172.5 x 71.0 x 35.5 mm)
  • Input Voltage:
    80-264 VAC, derate output power 25% <90 VAC
  • No Load Input Power:
    <0.5 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    >87%
  • Operating Temp:
    0 °C to +60 °C, derate from 100% power at +40 °C to 60% power at +60 °C
  • Isolation:
    4000 VAC Input to Output
    1500 VAC Input to Ground
    Output 0 V is electrically connected to Input Ground
  • Worldwide Safety Approvals:
    IEC60950-1, IEC60601-1
  • European Safety Approvals:
    EN60950-1, EN60601-1
  • US Safety Approvals:
    UL60950-1, UL60601-1
  • EMC:
    EN55011/22/FCC/Class B conducted
    EN55011/22/FCC/Class B radiated
