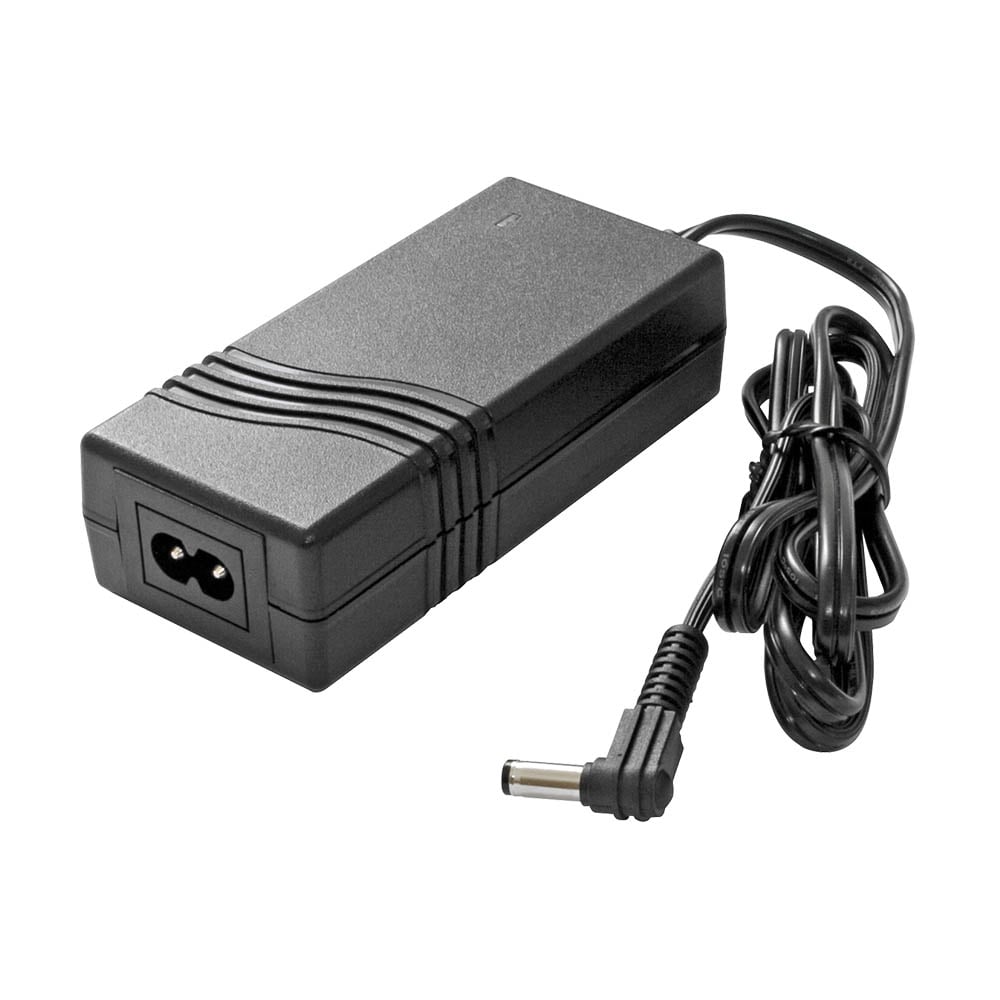

AEM

+ Click To Enlarge

60 Watts

  • CEC 2008 & EISA 2007 Compliant 12 V
  • Worldwide Medical Approvals
  • 4000 VAC Isolation
  • Class II Construction
  • Single Outputs from 5 V to 48 V
  • High Efficiency
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AEM60US05 80 to 264 Vac 5 V / 6 A
60W Request Sample Stock Check
AEM60US12 80 to 264 Vac 12 V / 5 A
60W Request Sample Stock Check
AEM60US15 80 to 264 Vac 15 V / 4 A
60W Request Sample Stock Check
AEM60US18 80 to 264 Vac 18 V / 3.33 A
60W Request Sample Stock Check
AEM60US19 80 to 264 Vac 19 V / 3.15 A
60W Request Sample Stock Check
AEM60US24 80 to 264 Vac 24 V / 2.5 A
60W Request Sample Stock Check
AEM60US36 80 to 264 Vac 36 V / 1.66 A
60W Request Sample Stock Check
AEM60US48 80 to 264 Vac 48 V / 1.25 A
60W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AEM60: 5.20 x 2.28 x 1.20 in (132.1 x 58.0 x 30.5 mm)
  • Input Voltage:
    80-264 VAC, derate output power 5% <90 VAC and 10% <85 VAC
  • No Load Input Power:
    <0.5 W for ?12 V output
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    85% typical
  • Operating Temp:
    0 °C to +60 °C, derate linearly from 100% load at +40 °C to 50% load at +60 °C
  • Isolation:
    4000 VAC Input to Output
  • Worldwide Safety Approvals:
    IEC60601-1
  • European Safety Approvals:
    EN60601-1, CE Mark
  • US Safety Approvals:
    UL60601-1
  • EMC:
    EN55011 Level B conducted & radiated

Declaration of Conformity

UL Certificate

CB Report

TUV Certificate

Unfortunately there are no 3D models available for this product.
