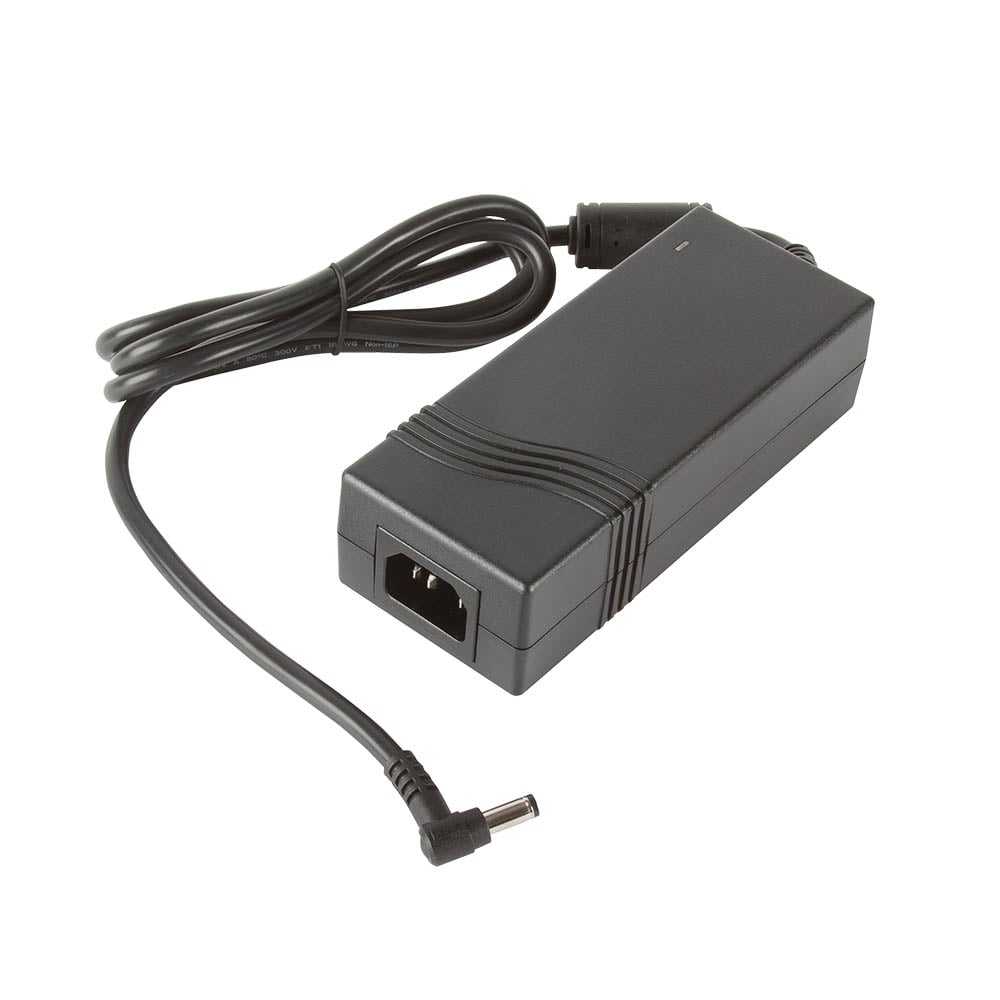

AEJ100

+ Click To Enlarge

100 Watts

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Active Power Factor Correction
  • Single Outputs 12 V to 48 V
  • <0.15 W Standby Power
  • 0 °C to 65 °C Operation
  • Universal Input
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AEJ100PS12 90 to 264 Vac 12 V / 8.34 A
100W Request Sample Stock Check
AEJ100PS15 90 to 264 Vac 15 V / 6.67 A
100W Request Sample Stock Check
AEJ100PS19 90 to 264 Vac 19 V / 5.26 A
100W Request Sample Stock Check
AEJ100PS24 90 to 264 Vac 24 V / 4.17 A
100W Request Sample Stock Check
AEJ100PS28 90 to 264 Vac 36 V / 2.78 A
100W Request Sample Stock Check
AEJ100PS36 90 to 264 Vac 36 V / 2.78 A
100W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AEJ100: 5.59 x 2.28 x 1.48” (141.0 x 58.0 x 39.50 mm)
  • Input Voltage:
    90 to 264 VAC
  • No Load Input Power:
    0.15 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    89% (See datasheet)
  • Operating Temp:
    -30 to +65 °C (Derate from 100% load at 40 °C to 58% load at 65 °C)
  • Isolation:
    Input to Output: 3000 VAC
    Input to Ground: 1500 VAC
    Output to Ground:Negative output is connected to ground
  • Worldwide Safety Approvals:
    IEC60950-1
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1
  • Other Safety Approvals:
    AU/NZ60950.1
  • EMC:
    EN55032, Level B, Conducted & Radiated

CB Certificate

Declaration of Conformity

TUV Certificate

Unfortunately there are no 3D models available for this product.
