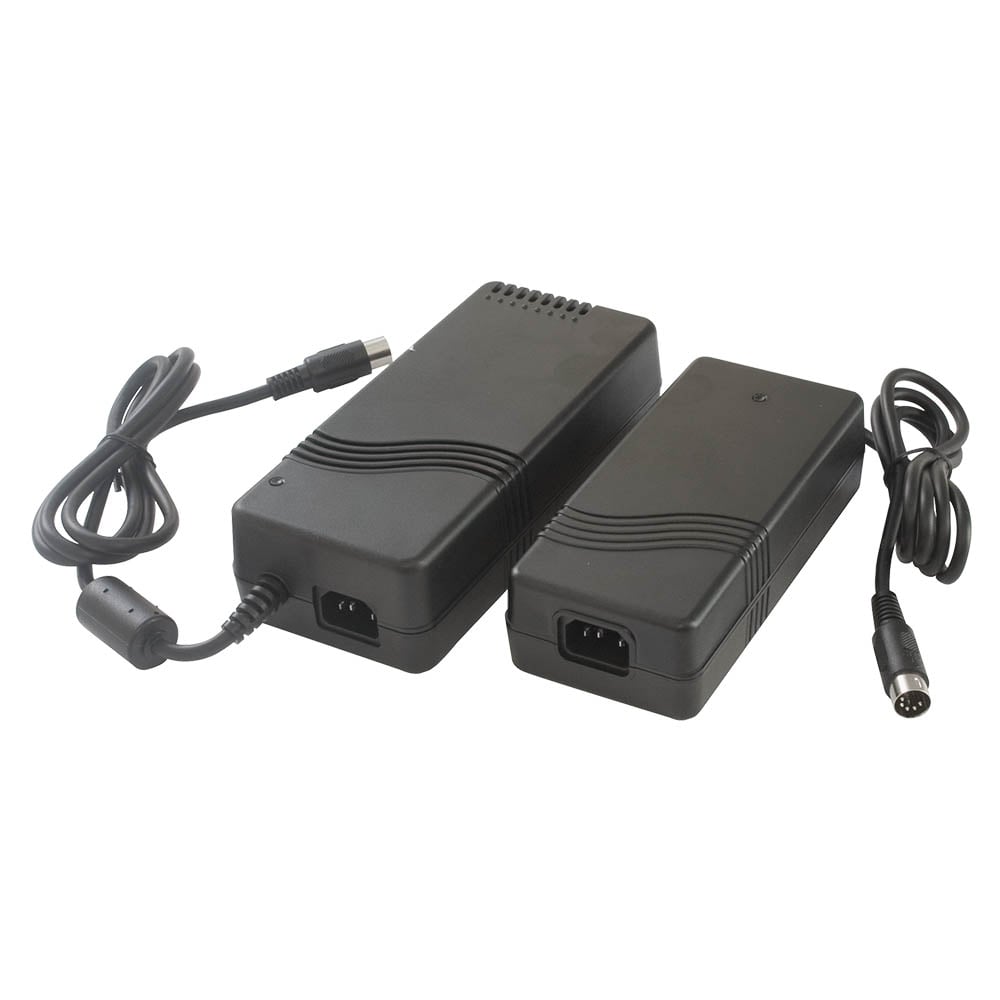

AEH

AEH

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

8.25-130 Watts

  • Output Voltages from 2.5 V to 48 V
  • Non-standard Outputs Available
  • Universal Input
  • Single & Multiple Output Versions
  • 0 °C to +60 °C Operating Temperature
  • Efficiency up to 80%
  • Non-standard Connectors Available
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AEH15US03 90 to 264 Vac 3.3 V / 2.5 A
8.25W Request Sample Stock Check
AEH15US05 90 to 264 Vac 5 V / 2.4 A
12W Request Sample Stock Check
AEH15US07 90 to 264 Vac 7 V / 1.7 A
12W Request Sample Stock Check
AEH15US10 90 to 264 Vac 10 V / 1.5 A
15W Request Sample Stock Check
AEH15US12 90 to 264 Vac 12 V / 1.25 A
15W Request Sample Stock Check
AEH15US15 90 to 264 Vac 15 V / 1 A
15W Request Sample Stock Check
AEH15US18 90 to 264 Vac 18 V / 0.83 A
15W Request Sample Stock Check
AEH15US24 90 to 264 Vac 24 V / 0.62 A
15W Request Sample Stock Check
AEH15US30 90 to 264 Vac 30 V / 0.5 A
15W Request Sample Stock Check
AEH15US36 90 to 264 Vac 36 V / 0.42 A
15W Request Sample Stock Check
AEH15US48 90 to 264 Vac 48 V / 0.31 A
15W Request Sample Stock Check
AEH45US02 90 to 264 Vac 2.5 V / 8 A
20W Request Sample Stock Check
AEH45US03 90 to 264 Vac 3.3 V / 8 A
26W Request Sample Stock Check
AEH45US05 90 to 264 Vac 5 V / 8 A
40W Request Sample Stock Check
AEH45US07 90 to 264 Vac 7 V / 6 A
42W Request Sample Stock Check
AEH45US10 90 to 264 Vac 10 V / 4.5 A
45W Request Sample Stock Check
AEH45US12 90 to 264 Vac 12 V / 3.7 A
44W Request Sample Stock Check
AEH45US15 90 to 264 Vac 15 V / 2.9 A
44W Request Sample Stock Check
AEH45US18 90 to 264 Vac 18 V / 2.4 A
44W Request Sample Stock Check
AEH45US24 90 to 264 Vac 24 V / 2 A
48W Request Sample Stock Check
AEH45US30 90 to 264 Vac 30 V / 1.7 A
50W Request Sample Stock Check
AEH45US36 90 to 264 Vac 36 V / 1.4 A
50W Request Sample Stock Check
AEH45US48 90 to 264 Vac 48 V / 1 A
50W Request Sample Stock Check
AEH45UM21 90 to 264 Vac 12 V / 3 A
-12 V / 1 A
42W Request Sample Stock Check
AEH45UM22 90 to 264 Vac 15 V / 2 A
-15 V / 1 A
42W Request Sample Stock Check
AEH45UM23 90 to 264 Vac 5 V / 5 A
12 V / 2 A
42W Request Sample Stock Check
AEH45UM26 90 to 264 Vac 5 V / 5 A
15 V / 1.5 A
42W Request Sample Stock Check
AEH45UM25 90 to 264 Vac 5 V / 5 A
24 V / 1 A
42W Request Sample Stock Check
AEH45UM27 90 to 264 Vac 5 V / 5 A
-24 V / 1 A
42W Request Sample Stock Check
AEH45UM28 90 to 264 Vac 3.3 V / 5 A
5 V / 2 A
27W Request Sample Stock Check
AEH45UM29 90 to 264 Vac 3.3 V / 5 A
12 V / 2 A
40W Request Sample Stock Check
AEH45UM33 90 to 264 Vac 5 V / 5 A
12 V / 2 A
-5 V / 0.8 A
42W Request Sample Stock Check
AEH45UM31 90 to 264 Vac 5 V / 5 A
12 V / 2 A
-12 V / 0.8 A
42W Request Sample Stock Check
AEH45UM32 90 to 264 Vac 5 V / 5 A
15 V / 2 A
-15 V / 0.8 A
42W Request Sample Stock Check
AEH45UM34 90 to 264 Vac 3.3 V / 5.2 A
12 V / 2 A
-5 V / 0.8 A
40W Request Sample Stock Check
AEH45UM35 90 to 264 Vac 3.3 V / 5 A
12 V / 2 A
-12 V / 0.8 A
42W Request Sample Stock Check
AEH45UM38 90 to 264 Vac 5 V / 5 A
24 V / 1 A
-12 V / 0.8 A
42W Request Sample Stock Check
AEH45UM39 90 to 264 Vac 5 V / 5 A
24 V / 1 A
-24 V / 0.8 A
42W Request Sample Stock Check
AEH80US03 90 to 264 Vac 3.3 V / 15.1 A
65W Request Sample Stock Check
AEH80US05 90 to 264 Vac 5 V / 13 A
70W Request Sample Stock Check
AEH80US07 90 to 264 Vac 7 V / 9.9 A
75W Request Sample Stock Check
AEH80US10 90 to 264 Vac 10 V / 7.5 A
80W Request Sample Stock Check
AEH80US12 90 to 264 Vac 12 V / 6.6 A
80W Request Sample Stock Check
AEH80US15 90 to 264 Vac 15 V / 5.3 A
80W Request Sample Stock Check
AEH80US18 90 to 264 Vac 18 V / 4.4 A
80W Request Sample Stock Check
AEH80US24 90 to 264 Vac 24 V / 3.3 A
80W Request Sample Stock Check
AEH80US30 90 to 264 Vac 30 V / 2.6 A
80W Request Sample Stock Check
AEH80US36 90 to 264 Vac 36 V / 2.2 A
80W Request Sample Stock Check
AEH80US48 90 to 264 Vac 48 V / 1.6 A
80W Request Sample Stock Check
AEH80UM23 90 to 264 Vac 5 V / 7 A
12 V / 3 A
60W Request Sample Stock Check
AEH80UM26 90 to 264 Vac 5 V / 7 A
15 V / 3 A
60W Request Sample Stock Check
AEH80UM25 90 to 264 Vac 5 V / 7 A
24 V / 2 A
60W Request Sample Stock Check
AEH80UM29 90 to 264 Vac 5 V / 7 A
-24 V / 2 A
60W Request Sample Stock Check
AEH80UM28 90 to 264 Vac 3.3 V / 7 A
5 V / 3 A
38W Request Sample Stock Check
AEH80UM27 90 to 264 Vac 3.3 V / 7 A
12 V / 3 A
56W Request Sample Stock Check
AEH80UM33 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-5 V / 0.8 A
65W Request Sample Stock Check
AEH80UM31 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-12 V / 0.8 A
65W Request Sample Stock Check
AEH80UM32 90 to 264 Vac 5 V / 6 A
15 V / 2.1 A
-15 V / 0.8 A
65W Request Sample Stock Check
AEH80UM34 90 to 264 Vac 3.3 V / 7 A
12 V / 3 A
-5 V / 0.8 A
65W Request Sample Stock Check
AEH80UM37 90 to 264 Vac 3.3 V / 7 A
12 V / 3 A
-12 V / 0.8 A
65W Request Sample Stock Check
AEH80UM38 90 to 264 Vac 5 V / 7 A
24 V / 2 A
-24 V / 0.8 A
65W Request Sample Stock Check
AEH80UM39 90 to 264 Vac 5 V / 6 A
24 V / 2 A
-12 V / 0.8 A
65W Request Sample Stock Check
AEH130PS3V3 90 to 264 Vac 3.3 V / 27.2 A
90W Request Sample Stock Check
AEH130PS05 90 to 264 Vac 5 V / 23 A
115W Request Sample Stock Check
AEH130PS07 90 to 264 Vac 7 V / 18.5 A
130W Request Sample Stock Check
AEH130PS09 90 to 264 Vac 9 V / 14.4 A
130W Request Sample Stock Check
AEH130PS12 90 to 264 Vac 12 V / 10.8 A
130W Request Sample Stock Check
AEH130PS15 90 to 264 Vac 15 V / 8.6 A
130W Request Sample Stock Check
AEH130PS18 90 to 264 Vac 18 V / 7.2 A
130W Request Sample Stock Check
AEH130PS24 90 to 264 Vac 24 V / 5.4 A
130W Request Sample Stock Check
AEH130PS28 90 to 264 Vac 28 V / 4.6 A
130W Request Sample Stock Check
AEH130PS36 90 to 264 Vac 36 V / 3.6 A
130W Request Sample Stock Check
AEH130PS48 90 to 264 Vac 48 V / 2.7 A
130W Request Sample Stock Check
AEH130PS54 90 to 264 Vac 54 V / 2.4 A
130W Request Sample Stock Check
AEH130PD01 90 to 264 Vac 3.3 V / 20 A
12 V / 2 A
90W Request Sample Stock Check
AEH130PD02 90 to 264 Vac 5 V / 20 A
12 V / 2 A
120W Request Sample Stock Check
AEH130PD03 90 to 264 Vac 5 V / 20 A
15 V / 2 A
120W Request Sample Stock Check
AEH130PD04 90 to 264 Vac 5 V / 20 A
24 V / 2 A
120W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AEH15: 3.58 x 1.5 x 1.42 in (91.0 x 38.0 x 36.0 mm), AEH45: 5.75 x 2.99 x 1.69 in 146.0 x 76.0 x 43.0 mm), AEH80: 6.61 x 3.09 x 1.75 in 167.9 x 78.5 x 44.5 mm), AEH130: 7.71 x 3.46 x 1.99 in 196.0 x 88.0 x 50.5 mm)
  • Input Voltage:
    90-264 VAC
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    Up to 80%
  • Operating Temp:
    0 °C to +60 °C, derate linearly from 100% load at +40 °C to 50% load at +60 °C
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1, CE Mark
  • US Safety Approvals:
    UL60950-1, CSA C22.2 No. 950 per cUL
  • EMC:
    EN55022 level B, conducted and radiated

UL Certificate

CB Report

TUV Certificate

TUV Certificate - AEH45

TUV Certificate - AEH130

Declaration of Conformity
