AED

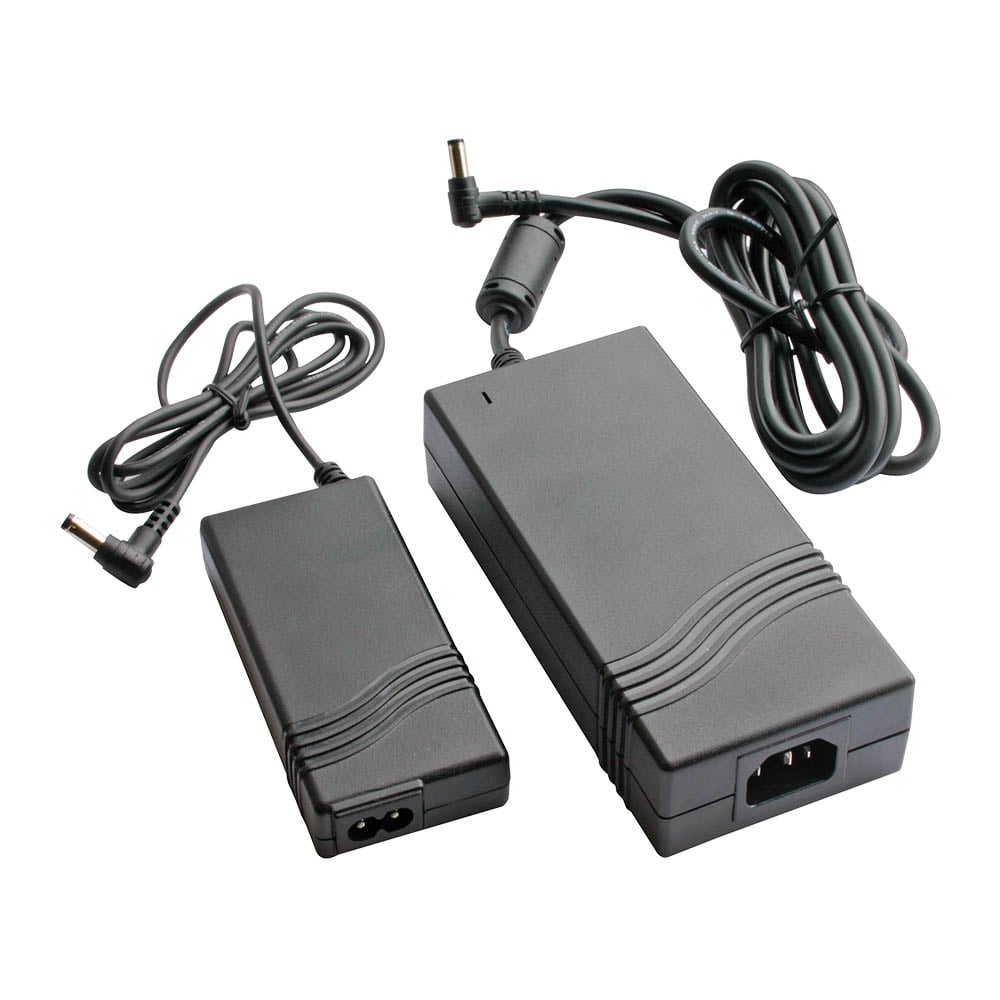

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

36-70 Watts

  • Low Profile
  • Single Outputs from 5 V to 48 V
  • Universal Input
  • Optional Floating Output
  • High Power Density
  • Class II Insulation on 36 W Version
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AED36US05 90 to 264 Vac 5 V / 4 A
36W Request Sample Stock Check
AED36US09 90 to 264 Vac 9 V / 3 A
36W Request Sample Stock Check
AED36US12 90 to 264 Vac 12 V / 2 A
36W Request Sample Stock Check
AED36US13 90 to 264 Vac 13 V / 2.4 A
36W Request Sample Stock Check
AED36US15 90 to 264 Vac 15 V / 2.4 A
36W Request Sample Stock Check
AED36US18 90 to 264 Vac 18 V / 2 A
36W Request Sample Stock Check
AED36US24 90 to 264 Vac 24 V / 1.5 A
36W Request Sample Stock Check
AED36US48 90 to 264 Vac 48 V / 0.75 A
36W Request Sample Stock Check
AED45US05 90 to 264 Vac 5 V / 6 A
45W Request Sample Stock Check
AED45US12 90 to 264 Vac 12 V / 3.75 A
45W Request Sample Stock Check
AED45US15 90 to 264 Vac 15 V / 3 A
45W Request Sample Stock Check
AED45US18 90 to 264 Vac 18 V / 2.5 A
45W Request Sample Stock Check
AED45US19 90 to 264 Vac 19 V / 2.37 A
45W Request Sample Stock Check
AED45US24 90 to 264 Vac 24 V / 1.88 A
45W Request Sample Stock Check
AED45US48 90 to 264 Vac 48 V / 1 A
45W Request Sample Stock Check
AED70US12 90 to 264 Vac 12 V / 5.5 A
70W Request Sample Stock Check
AED70US15 90 to 264 Vac 15 V / 4.6 A
70W Request Sample Stock Check
AED70US18 90 to 264 Vac 18 V / 3.9 A
70W Request Sample Stock Check
AED70US19 90 to 264 Vac 19 V / 3.7 A
70W Request Sample Stock Check
AED70US24 90 to 264 Vac 24 V / 3 A
70W Request Sample Stock Check
AED70US48 90 to 264 Vac 48 V / 1.5 A
70W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AED36: 4.33 x 1.97 x 0.79 in (110 x 50 x 20 mm) AED45/70: 5.20 x 2.29 x 1.18 in (132 x 58 x 30 mm)
  • Input Voltage:
    90-264 VAC
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    85% typical at 230 VAC & 100% load
  • Operating Temp:
    0 ?C to +60 ?C derate linearly from 100% load at +40 ?C to 50% load at +60 ?C
  • Isolation:
    3000 VAC Input to Output,
    1500 VAC Input to Ground.
    Negative output is connected to ground. For optional 500 VAC output to ground isolation add suffix ‘-F’ to model number
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1
  • EMC:
    EN55022 Class B conducted & radiated

Declaration of Conformity

UL Certificate

CB Report

TUV Certificate - AED45-70

TUV Certificate - AED36

TUV Certificate
