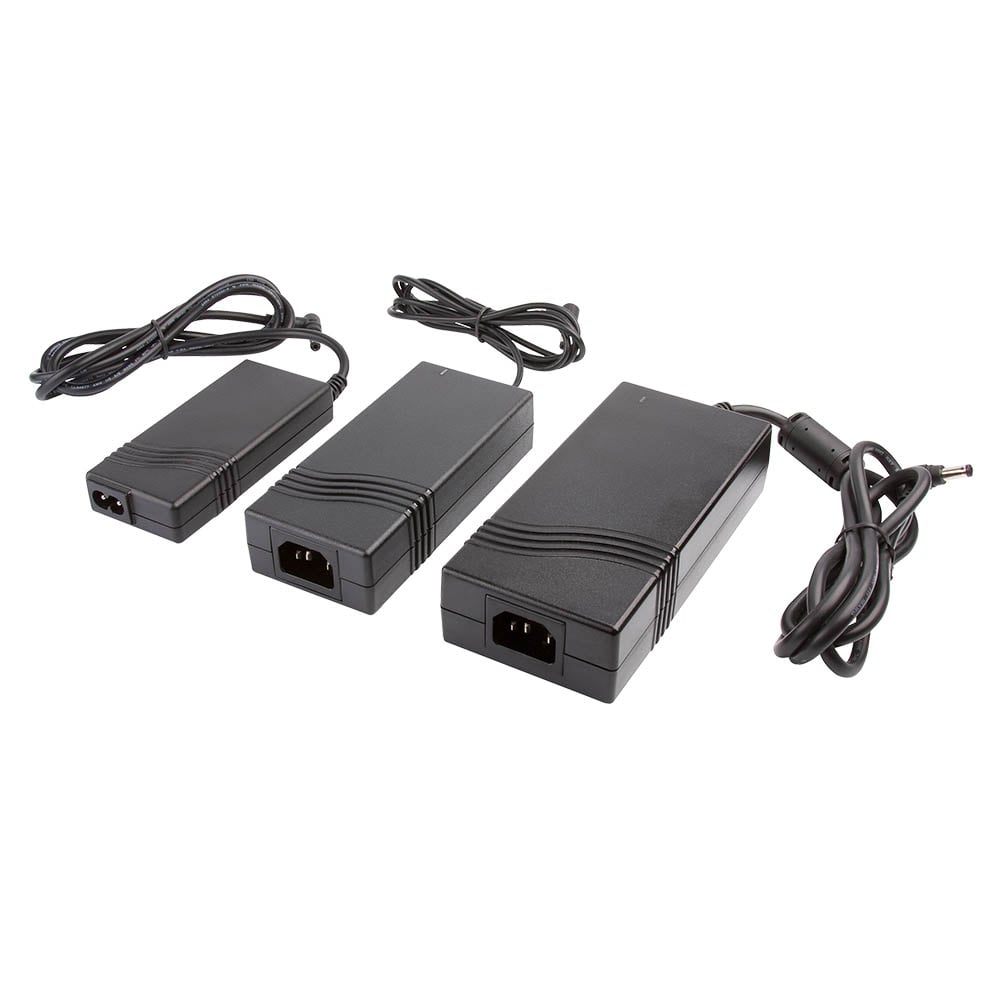

AEB

+ Click To Enlarge

36-100 Watts

  • CEC2008 & EISA2007 Compliant
  • Low Profile
  • Single Outputs from 5 V to 48 V
  • High Power Density
  • Universal Input
  • China Compulsory Certification (CCC) Qualified
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AEB100PS12 90 to 264 Vac 12 V / 8.34 A
100W Request Sample Stock Check
AEB100PS125 90 to 264 Vac 12.5 V / 8 A
100W Request Sample Stock Check
AEB100PS15 90 to 264 Vac 15 V / 6.67 A
100W Request Sample Stock Check
AEB100PS24 90 to 264 Vac 24 V / 4.17 A
100W Request Sample Stock Check
AEB100PS48 90 to 264 Vac 48 V / 2.08 A
100W Request Sample Stock Check
AEB36US05 90 to 264 Vac 5 V / 4 A
36W Request Sample Stock Check
AEB36US09 90 to 264 Vac 9 V / 3 A
36W Request Sample Stock Check
AEB36US12 90 to 264 Vac 12 V / 2.5 A
36W Request Sample Stock Check
AEB36US13 90 to 264 Vac 13.5 V / 2.4 A
36W Request Sample Stock Check
AEB36US15 90 to 264 Vac 15 V / 2.4 A
36W Request Sample Stock Check
AEB36US18 90 to 264 Vac 18 V / 2 A
36W Request Sample Stock Check
AEB36US24 90 to 264 Vac 24 V / 1.5 A
36W Request Sample Stock Check
AEB36US48 90 to 264 Vac 48 V / 0.75 A
36W Request Sample Stock Check
AEB45US12 90 to 264 Vac 12 V / 3.75 A
45W Request Sample Stock Check
AEB45US15 90 to 264 Vac 15 V / 3 A
45W Request Sample Stock Check
AEB45US18 90 to 264 Vac 18 V / 2.5 A
45W Request Sample Stock Check
AEB45US19 90 to 264 Vac 19 V / 2.37 A
45W Request Sample Stock Check
AEB45US24 90 to 264 Vac 24 V / 1.88 A
45W Request Sample Stock Check
AEB45US48 90 to 264 Vac 48 V / 1 A
45W Request Sample Stock Check
AEB70US12 90 to 264 Vac 12 V / 5.5 A
70W Request Sample Stock Check
AEB70US15 90 to 264 Vac 15 V / 4.6 A
70W Request Sample Stock Check
AEB70US18 90 to 264 Vac 18 V / 3.9 A
70W Request Sample Stock Check
AEB70US19 90 to 264 Vac 19 V / 3.7 A
70W Request Sample Stock Check
AEB70US24 90 to 264 Vac 24 V / 3 A
70W Request Sample Stock Check
AEB70US48 90 to 264 Vac 48 V / 1.5 A
70W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    AEB36: 4.33 x 1.97 x 0.79 in (110.0 x 50.0 x 20.0 mm)AEB45: 4.72 x 2.05 x 1.22 in (120.0 x 52.0 x 31.0 mm)AEB70: 5.20 x 2.28 x 1.20 in (132.0 x 58.0 x 30.5 mm)AEB100: 5.90 x 2.76 x 1.38 in (150.0 x 70.0 x 35.0 mm)
  • Input Voltage:
    90-264 VAC
  • No Load Input Power:
    <0.5 W
  • Harmonic Currents:
    EN61000-3-2 Class A
  • Efficiency:
    73-87%
  • Operating Temp:
    AEB36/45/70: 0 ?C to +60 °C deratelinearly from 100% load at +40 °C to 60%,load at +60 °C, AEB100: 0 °C to +60 °Cderate linearly from 100% load at +40 °C to50% load at +60 °C
  • Isolation:
    AEB36: 3000 VAC Input to OutputAEB45/70/100: 3000 VAC Input to Output, 1500 VAC Input to Ground. Negative output is connected to ground. For optional 500 VAC output to ground isolation add suffix ‘-F’ to model number
  • European Safety Approvals:
    EN60950-1:2006+A11
  • US Safety Approvals:
    UL/cUL60950-1
  • Other Safety Approvals:
    China Compulsory Certification (CCC) qualified (AEB36/70 only)
  • EMC:
    EN55022, Level B conducted & radiated

UL Certificate

Declaration of Conformity - AEB36

Declaration of Conformity - AEB45

Declaration of Conformity - AEB70

Declaration of Conformity - AEB100

Declaration of Conformity - AEB

TUV Certificate - AEB45

TUV Certificate - AEB70

TUV Certificate - AEB100

TUV Certificate - AEB36

TUV Certificate

Unfortunately there are no 3D models available for this product.
