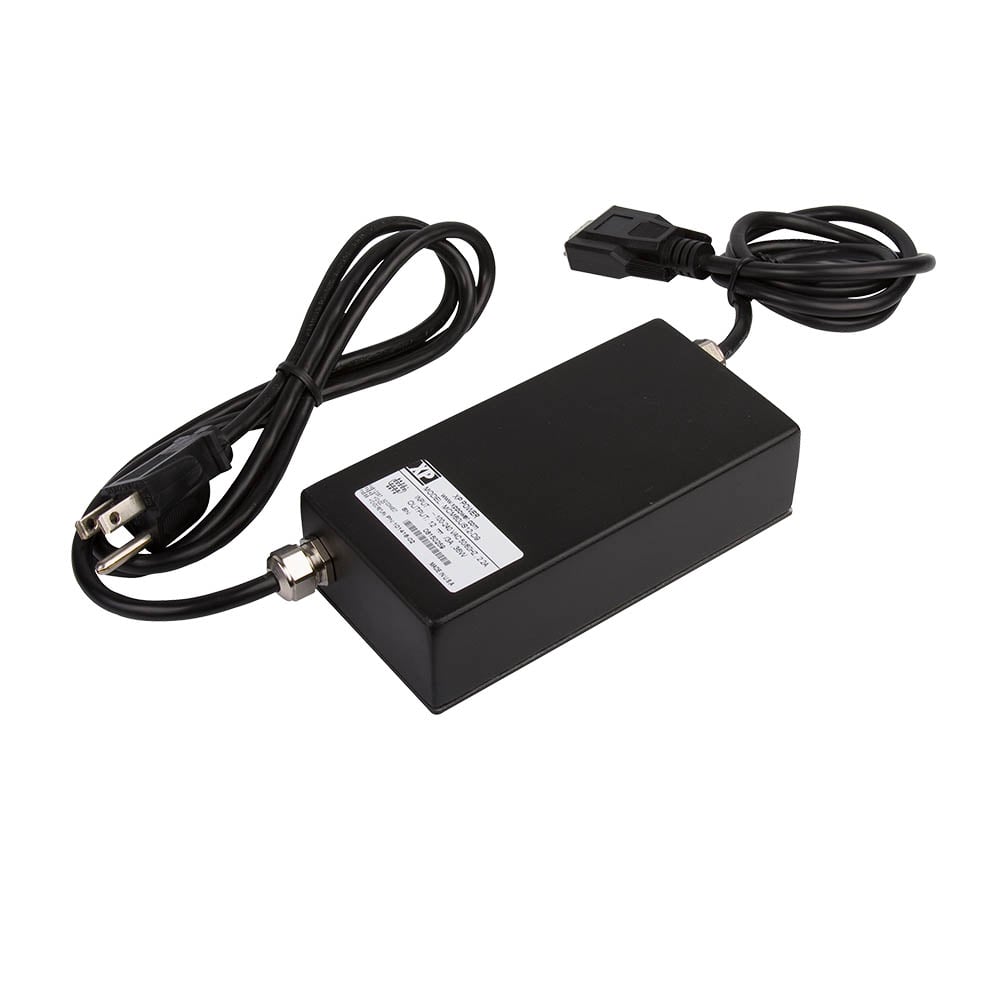

MCM60

+ Click To Enlarge

Sample Request

60 Watts

  • Compact Size - High Power Density
  • Rugged Design for Defense Applications
  • Universal Input
  • Wide Operating Temperature
  • MIL-STD-461E
  • Convection-cooled
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
MCM60US12-D9 90 to 264 Vac, 120 to 370 Vdc 12 V / 5 A
60W Stock Check
MCM60US15-D9 90 to 264 Vac, 120 to 370 Vdc 15 V / 4 A
60W Stock Check
MCM60US18-D9 90 to 264 Vac, 120 to 370 Vdc 18 V / 3.3 A
60W Stock Check
MCM60US24-D9 90 to 264 Vac, 120 to 370 Vdc 24 V / 2.5 A
60W Stock Check
MCM60US28-D9 90 to 264 Vac, 120 to 370 Vdc 28 V / 2.1 A
60W Stock Check

Short Form Datasheet

  • Dimensions:
    MCM60: 5.50 x 2.75 x 1.50 in (139.7 x 69.9 x 37.9 mm)
  • Input Voltage:
    90-264 VAC (120-370 VDC)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    Up to 83%
  • Operating Temp:
    -40 °C to +70 °C, derate linearly from 100% load at +50 °C to 50% load at +70 °C. Start up at -30 °C
  • Isolation:
    4000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1, EN60601-1
  • US Safety Approvals:
    UL60950-1, UL60601-1, CSA 22.2 601.1
  • EMC:
    MIL-STD-461E, CE102, RE102
    EN60601-1-2, EN61204-3, FCC 20780,
    EN55022, level B conducted
    EN55022 Level A radiated
