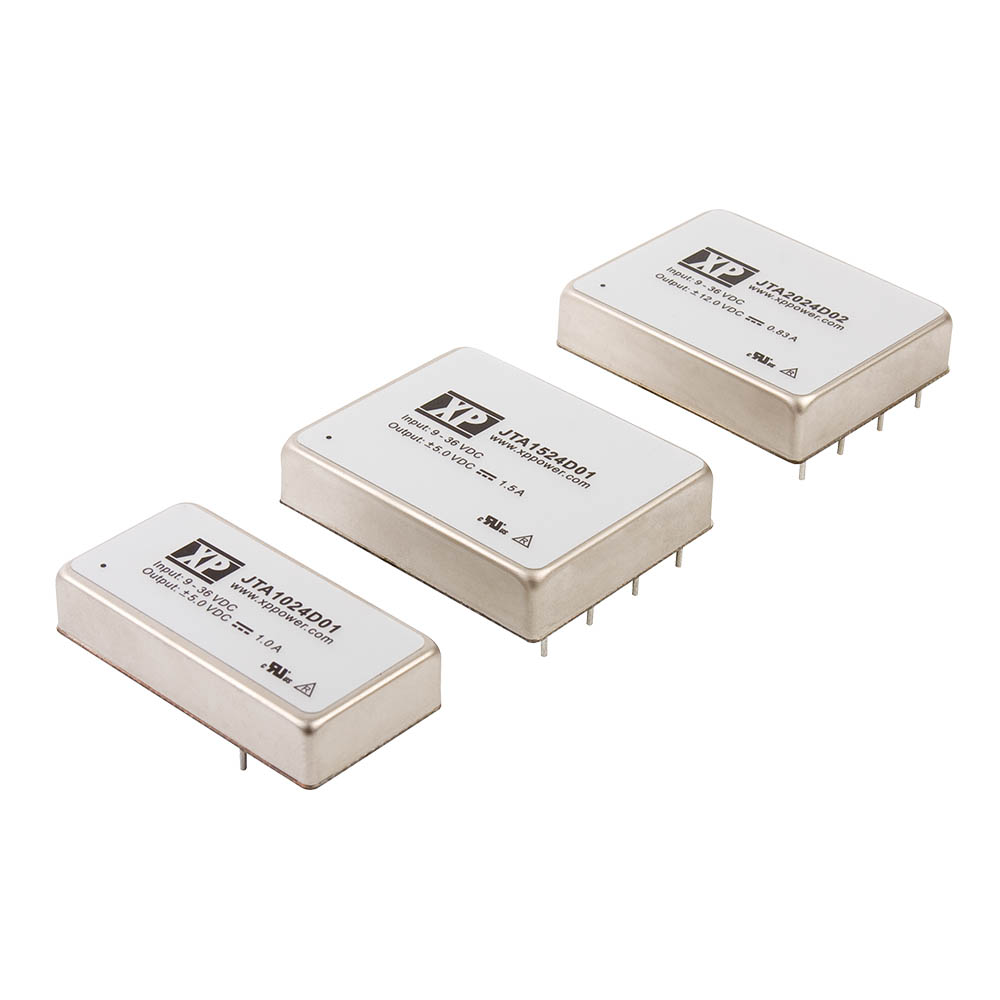

JTA

+ Click To Enlarge

Sample Request

10-20 Watts

  • 4:1 Input Range
  • 40 °C to +100 °C Operating Temperature
  • Single & Dual Outputs
  • Overvoltage & Overcurrent Protection
  • UL Safety Approvals
  • Remote On/Off
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
JTA1024D01 9 to 36 Vdc 5 V / 1 A
-5 V / 1 A
10W Stock Check
JTA1024D02 9 to 36 Vdc 12 V / 0.42 A
-12 V / 0.42 A
10W Stock Check
JTA1024D03 9 to 36 Vdc 15 V / 0.33 A
-15 V / 0.33 A
10W Stock Check
JTA1024S05 9 to 36 Vdc 5 V / 2 A
10W Stock Check
JTA1024S12 9 to 36 Vdc 12 V / 0.83 A
10W Stock Check
JTA1024S15 9 to 36 Vdc 15 V / 0.67 A
10W Stock Check
JTA1024S3V3 9 to 36 Vdc 3.3 V / 2 A
10W Stock Check
JTA1048D01 18 to 75 Vdc 5 V / 1 A
-5 V / 1 A
10W Stock Check
JTA1048D02 18 to 75 Vdc 12 V / 0.42 A
-12 V / 0.42 A
10W Stock Check
JTA1048D03 18 to 75 Vdc 15 V / 0.33 A
-15 V / 0.33 A
10W Stock Check
JTA1048S05 18 to 75 Vdc 5 V / 2 A
10W Stock Check
JTA1048S12 18 to 75 Vdc 12 V / 0.83 A
10W Stock Check
JTA1048S15 18 to 75 Vdc 15 V / 0.67 A
10W Stock Check
JTA1048S3V3 18 to 75 Vdc 3.3 V / 2 A
10W Stock Check
JTA1524D01 9 to 36 Vdc 5 V / 1.5 A
-5 V / 1.5 A
15W Stock Check
JTA1524D02 9 to 36 Vdc 12 V / 0.625 A
-12 V / 0.625 A
15W Stock Check
JTA1524D03 9 to 36 Vdc 15 V / 0.5 A
-15 V / 0.5 A
15W Stock Check
JTA1524S05 9 to 36 Vdc 5 V / 3 A
15W Stock Check
JTA1524S12 9 to 36 Vdc 12 V / 1.25 A
15W Stock Check
JTA1524S15 9 to 36 Vdc 15 V / 1 A
15W Stock Check
JTA1524S3V3 9 to 36 Vdc 3.3 V / 4.5 A
15W Stock Check
JTA1548D01 18 to 75 Vdc 5 V / 1.5 A
-5 V / 1.5 A
15W Stock Check
JTA1548D02 18 to 75 Vdc 12 V / 0.625 A
-12 V / 0.625 A
15W Stock Check
JTA1548D03 18 to 75 Vdc 15 V / 0.5 A
-15 V / 0.5 A
15W Stock Check
JTA1548S05 18 to 75 Vdc 5 V / 3 A
15W Stock Check
JTA1548S12 18 to 75 Vdc 12 V / 1.25 A
15W Stock Check
JTA1548S15 18 to 75 Vdc 15 V / 1 A
15W Stock Check
JTA1548S3V3 18 to 75 Vdc 3.3 V / 4.5 A
15W Stock Check
JTA2024D01 9 to 36 Vdc 5 V / 2 A
-5 V / 2 A
20W Stock Check
JTA2024D02 9 to 36 Vdc 12 V / 0.83 A
-12 V / 0.83 A
20W Stock Check
JTA2024D03 9 to 36 Vdc 15 V / 0.67 A
-15 V / 0.67 A
20W Stock Check
JTA2024S05 9 to 36 Vdc 5 V / 4 A
20W Stock Check
JTA2024S12 9 to 36 Vdc 12 V / 1.67 A
20W Stock Check
JTA2024S15 9 to 36 Vdc 15 V / 1.33 A
20W Stock Check
JTA2024S3V3 9 to 36 Vdc 3.3 V / 4 A
20W Stock Check
JTA2048D01 18 to 75 Vdc 5 V / 2 A
-5 V / 2 A
20W Stock Check
JTA2048D02 18 to 75 Vdc 12 V / 0.83 A
-12 V / 0.83 A
20W Stock Check
JTA2048D03 18 to 75 Vdc 15 V / 0.67 A
-15 V / 0.67 A
20W Stock Check
JTA2048S05 18 to 75 Vdc 5 V / 4 A
20W Stock Check
JTA2048S12 18 to 75 Vdc 12 V / 1.67 A
20W Stock Check
JTA2048S15 18 to 75 Vdc 15 V / 1.33 A
20W Stock Check
JTA2048S3V3 18 to 75 Vdc 3.3 V / 4 A
20W Stock Check

Short Form Datasheet

  • Dimensions:
    JTA10-20: 2.0 x 1.0 x 0.44 in (25.4 x 50.8 x 11.14 mm)
  • Input Voltage:
    9.0-36.0 VDC
    18.0-75.0 VDC
  • Efficiency:
    77-83%
  • Operating Temp:
    -40 °C to +100 °C
    Derate from 100% load at 70 °C (60 °C for JTA20) to no load at 100 °C
  • Isolation:
    1500 VDC
  • US Safety Approvals:
    UL60950-1
