ISW

+ Click To Enlarge

Sample Request

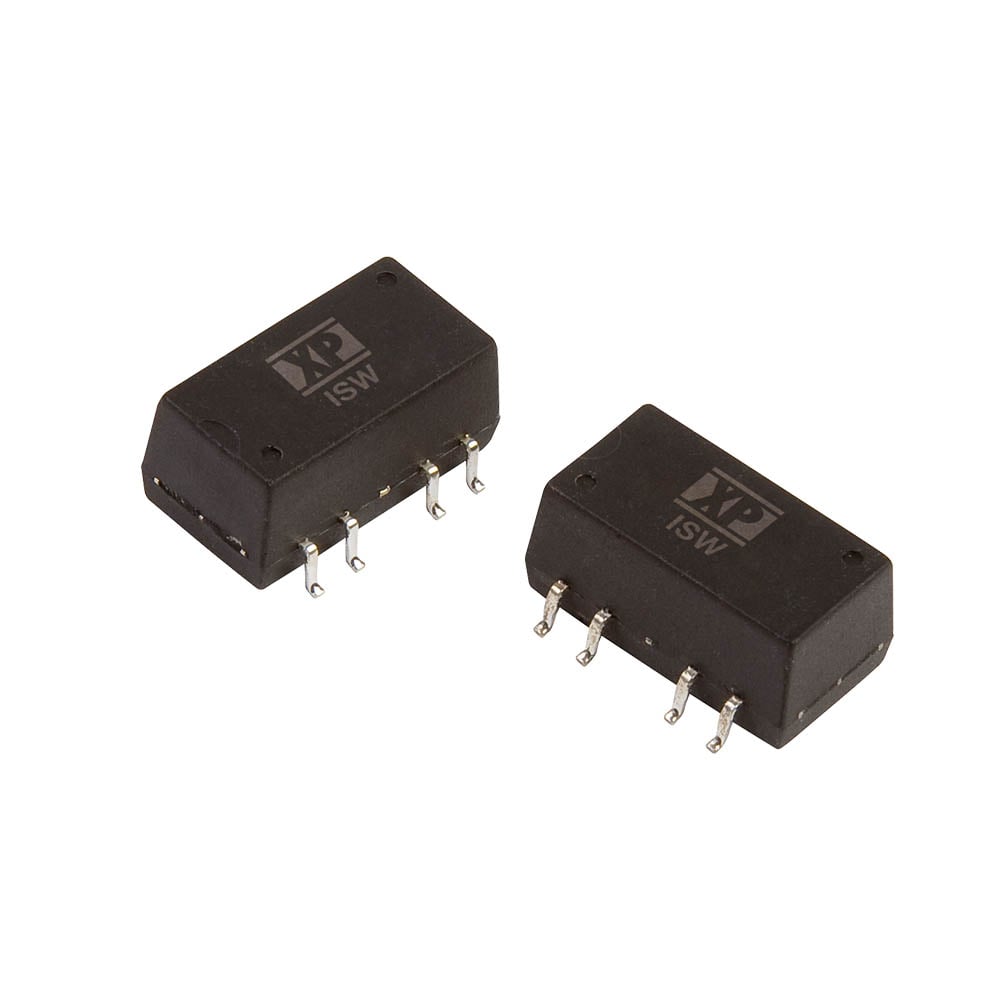

1 Watt

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • Regulated Output
  • Operating Temperature -40 °C to +85 °C
  • 1500 VDC Isolation, 3000 VDC Option
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISW0503A 4.75 to 5.25 Vdc 3.3 V / 0.243 A
1W Stock Check
ISW0505A 4.75 to 5.25 Vdc 5 V / 0.2 A
1W Stock Check
ISW0512A 4.75 to 5.25 Vdc 12 V / 0.084 A
1W Stock Check
ISW0515A 4.75 to 5.25 Vdc 15 V / 0.067 A
1W Stock Check
ISW1205A 11.4 to 12.6 Vdc 5 V / 0.2 A
1W Stock Check
ISW1212A 11.4 to 12.6 Vdc 12 V / 0.084 A
1W Stock Check
ISW1215A 11.4 to 12.6 Vdc 15 V / 0.067 A
1W Stock Check
ISW2405A 22.8 to 25.2 Vdc 5 V / 0.2 A
1W Stock Check
ISW2412A 22.8 to 25.2 Vdc 12 V
1W Stock Check

Short Form Datasheet

  • Dimensions:
    ISW: 0.6 x 0.327 x 0.276 in (15.24 x 8.3 x 7.0 mm)
  • Input Voltage:
    4.75-5.25 VDC
    11.4-12.6 VDC
    22.8-25.2 VDC
  • Efficiency:
    58-75%
  • Operating Temp:
    -40 °C to +85 °C
    Derate from 100% load at +70 °C to 60% load at 85 °C
  • Isolation:
    See Datasheet

Declaration of Conformity









To access 3D models please Login
