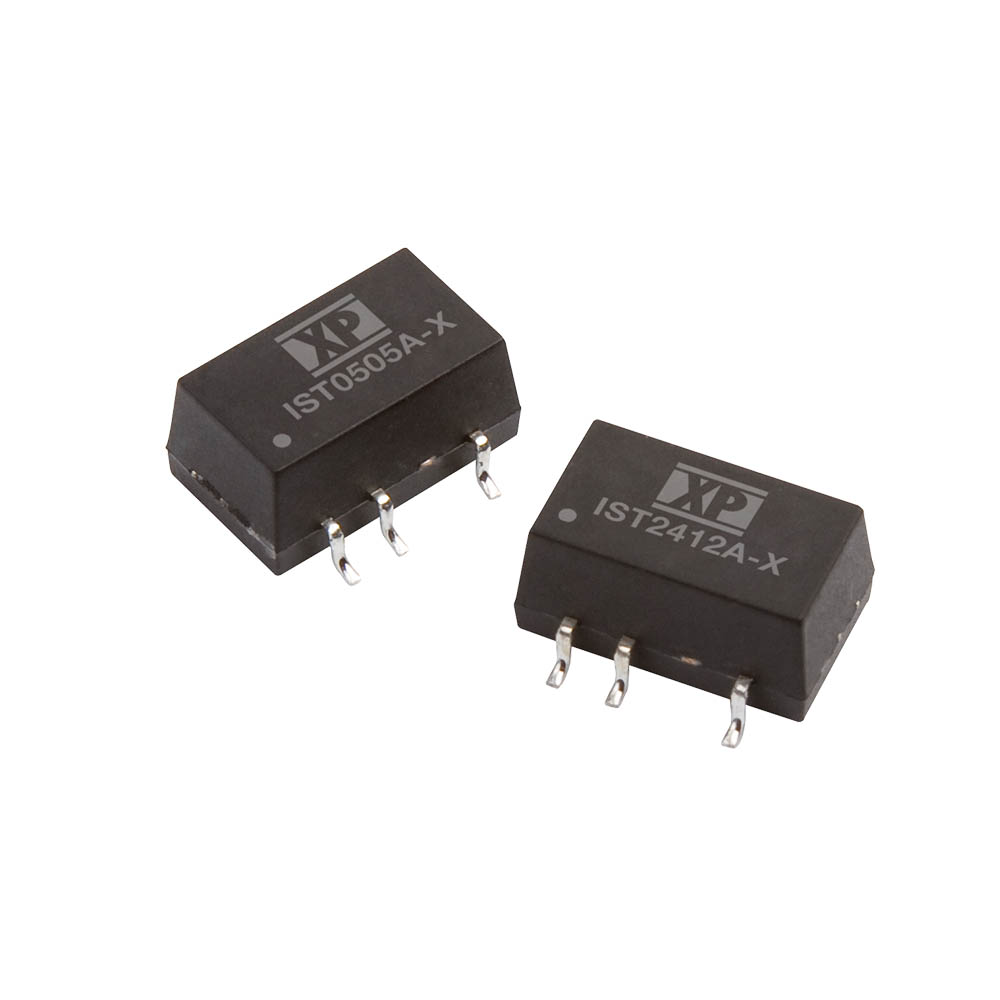

IST

+ Click To Enlarge

Sample Request

2 Watts

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • 1000 VDC Isolation
  • MTBF >3.5 MHrs
  • -40 °C to +85 °C Operation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IST0505A 4.5 to 5.5 Vdc 5 V / 0.4 A
2W Stock Check
IST0512A 4.5 to 5.5 Vdc 12 V / 0.167 A
2W Stock Check
IST0515A 4.5 to 5.5 Vdc 15 V / 0.133 A
2W Stock Check
IST1205A 10.8 to 13.2 Vdc 5 V / 0.4 A
2W Stock Check
IST1212A 10.8 to 13.2 Vdc 12 V / 0.167 A
2W Stock Check
IST1215A 10.8 to 13.2 Vdc 15 V / 0.133 A
2W Stock Check
IST2405A 13.5 to 16.5 Vdc 5 V / 0.4 A
2W Stock Check
IST2412A 10.8 to 13.2 Vdc 12 V / 0.167 A
2W Stock Check
IST2415A 13.5 to 16.5 Vdc 15 V / 0.133 A
2W Stock Check

Short Form Datasheet

  • Dimensions:
    IST: 0.5 x 0.295 x 0.236 in (12.7 x 7.5 x 6.0 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    78-80%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1000 VDC

Declaration of Conformity
