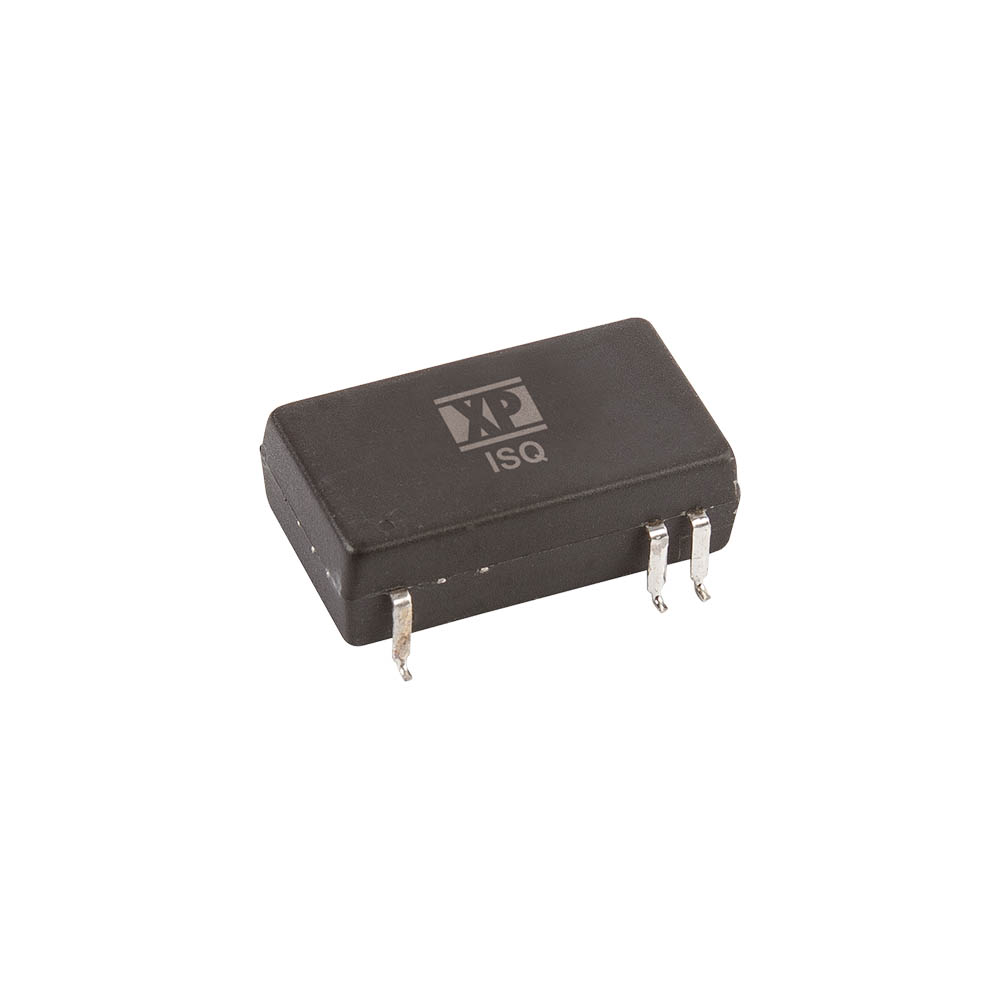

ISQ

+ Click To Enlarge

Sample Request

2 Watts

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • 6000 VDC Isolation
  • -40 °C to +85 °C Operation
  • MTBF >3.5 MHrs
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISQ0505A 4.5 to 5.5 Vdc 5 V / 0.4 A
2W Stock Check
ISQ0512A 4.5 to 5.5 Vdc 12 V / 0.167 A
2W Stock Check
ISQ0515A 4.5 to 5.5 Vdc 15 V / 0.133 A
2W Stock Check
ISQ1205A 10.8 to 13.2 Vdc 5 V / 0.4 A
2W Stock Check
ISQ1212A 10.8 to 13.2 Vdc 12 V / 0.167 A
2W Stock Check
ISQ1215A 10.8 to 13.2 Vdc 15 V / 0.133 A
2W Stock Check
ISQ2405A 21.6 to 26.4 Vdc 5 V / 0.4 A
2W Stock Check
ISQ2412A 21.6 to 26.4 Vdc 12 V / 0.167 A
2W Stock Check
ISQ2415A 21.6 to 26.4 Vdc 15 V / 0.133 A
2W Stock Check

Shortform Datasheet

  • Dimensions:
    ISQ: 0.94 x 0.54 x 0.29 in (23.86 x 15.24 x 7.50 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    75-80%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    6000 VDC

Declaration of Conformity
