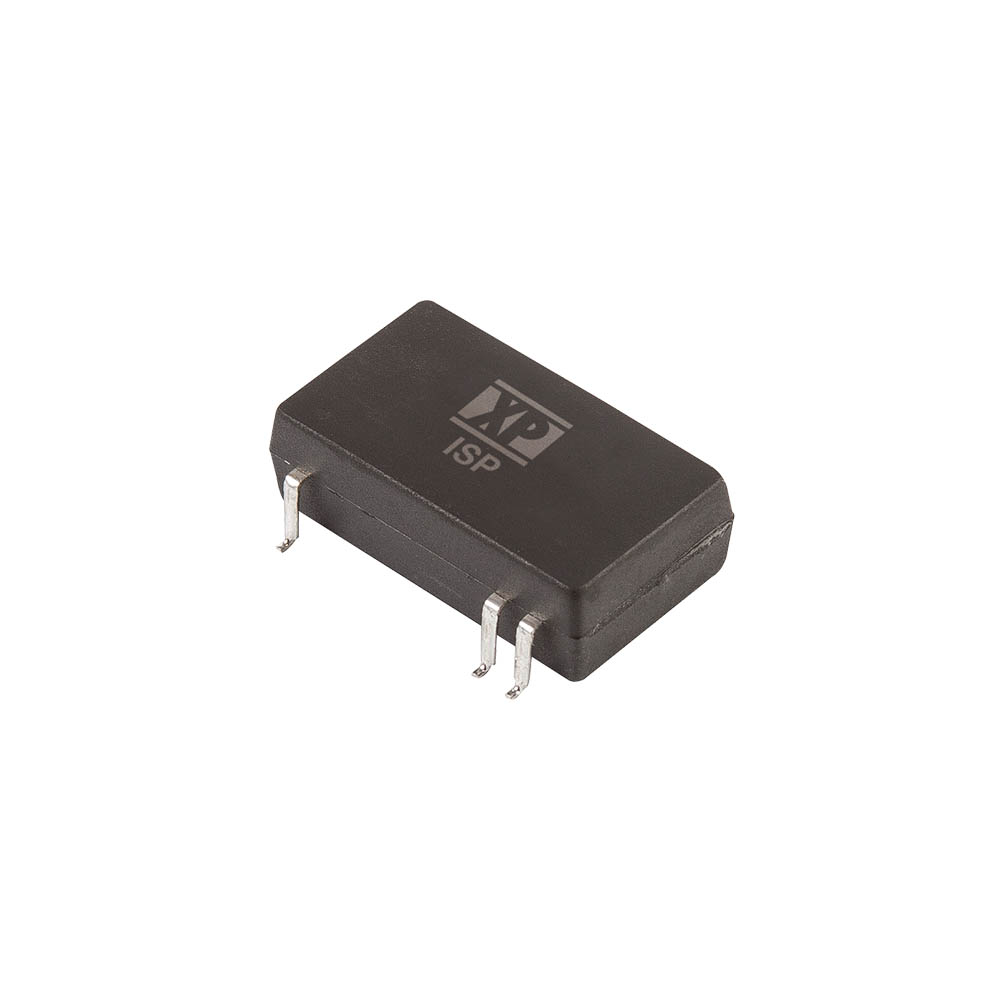

ISP

+ Click To Enlarge

Sample Request

2 Watts

  • Single & Dual Regulated Outputs
  • 2:1 Input Range
  • SMD Package
  • Industry Standard Pinout
  • 1500 VDC Isolation
  • 40 °C to +85 °C Operation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISP1203A 9 to 18 Vdc 3.3 V / 0.5 A
2W Stock Check
ISP1205 9 to 18 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
ISP1205A 9 to 18 Vdc 5 V / 0.4 A
2W Stock Check
ISP1212 9 to 18 Vdc 12 V / 0.083 A
-12 V / 0.083 A
2W Stock Check
ISP1212A 9 to 18 Vdc 12 V / 0.167 A
2W Stock Check
ISP1215 9 to 18 Vdc 15 V / 0.067 A
-15 V / 0.067 A
2W Stock Check
ISP2403A 18 to 36 Vdc 3.3 V / 0.5 A
2W Stock Check
ISP2405 18 to 36 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
ISP2405A 18 to 36 Vdc 5 V / 0.4 A
2W Stock Check
ISP2412 18 to 36 Vdc 12 V / 0.083 A
-12 V / 0.083 A
2W Stock Check
ISP2412A 18 to 36 Vdc 12 V / 0.167 A
2W Stock Check
ISP2415 18 to 36 Vdc 15 V / 0.067 A
-15 V / 0.067 A
2W Stock Check

Short Form Datasheet

  • Dimensions:
    ISP: 0.94 x 0.54 x 0.29 in (23.86 x 15.24 x 7.50 mm)
  • Input Voltage:
    9.0-18.0 VDC
    18.0-36.0 VDC
  • Efficiency:
    70-80%
  • Operating Temp:
    -40 °C to +70 °C
    Derate linearly to 0% load at +100 °C
  • Isolation:
    1500 VDC
