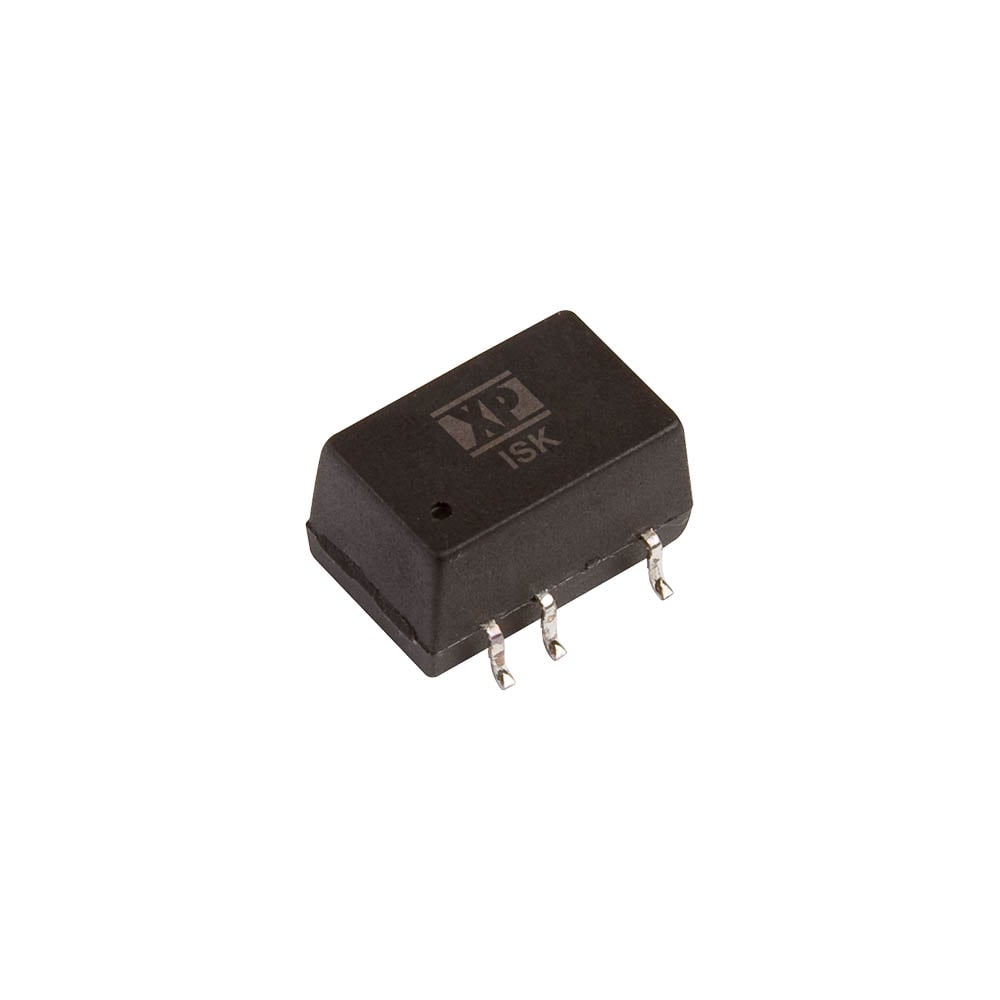

ISK

+ Click To Enlarge

Sample Request

0.25 Watts

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • Operating Temperature -40 °C to +105 °C
  • 1500 VDC Isolation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISK0503A 4.5 to 5.5 Vdc 3.3 V / 0.076 A
0.25W Stock Check
ISK0505A 4.5 to 5.5 Vdc 5 V / 0.05 A
0.25W Stock Check
ISK1205A 10.8 to 13.2 Vdc 5 V / 0.05 A
0.25W Stock Check
ISK1212A 10.8 to 13.2 Vdc 12 V / 0.021 A
0.25W Stock Check
ISK2405A 21.6 to 26.4 Vdc 5 V / 0.05 A
0.25W Stock Check

Short Form Datasheet

  • Dimensions:
    ISK: 0.500 x 0.44 x 0.285 in (12.7 x 11.2 x 7.25 mm)
  • Input Voltage:
    4.5-5.5 VDC
    10.8-13.2 VDC
    21.6-26.4 VDC
  • Efficiency:
    71-79%
  • Operating Temp:
    -40 °C to +105 °C
    Derate from 100% load at +100 °C to 80% load at 105 °C
  • Isolation:
    See Datasheet
