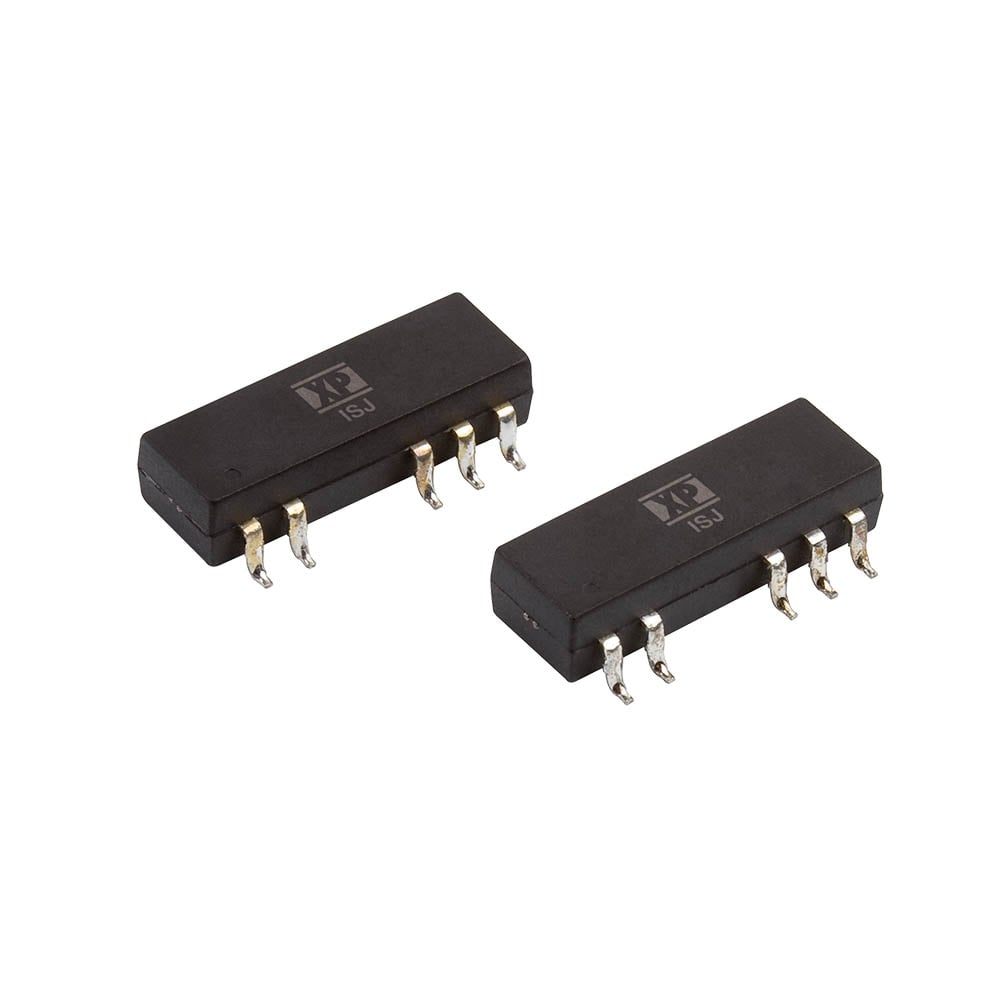

ISJ

+ Click To Enlarge

Sample Request

1 Watt

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • Operating Temperature -40 °C to +105 °C
  • 1500 VDC Isolation, 3000 VDC Option
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISJ0505A 4.5 to 5.5 Vdc 5 V / 0.2 A
1.0W Stock Check
ISJ0512A 4.5 to 5.5 Vdc 12 V / 0.083 A
1.0W Stock Check
ISJ0515A 4.5 to 5.5 Vdc 15 V / 0.067 A
1.0W Stock Check

Short Form Datasheet

  • Dimensions:
    ISJ: 0.76 x 0.26 x 0.17 in (19.5 x 6.6 x 4.5 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    73-77%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1500 VDC minimum

Declaration of Conformity
