ISH

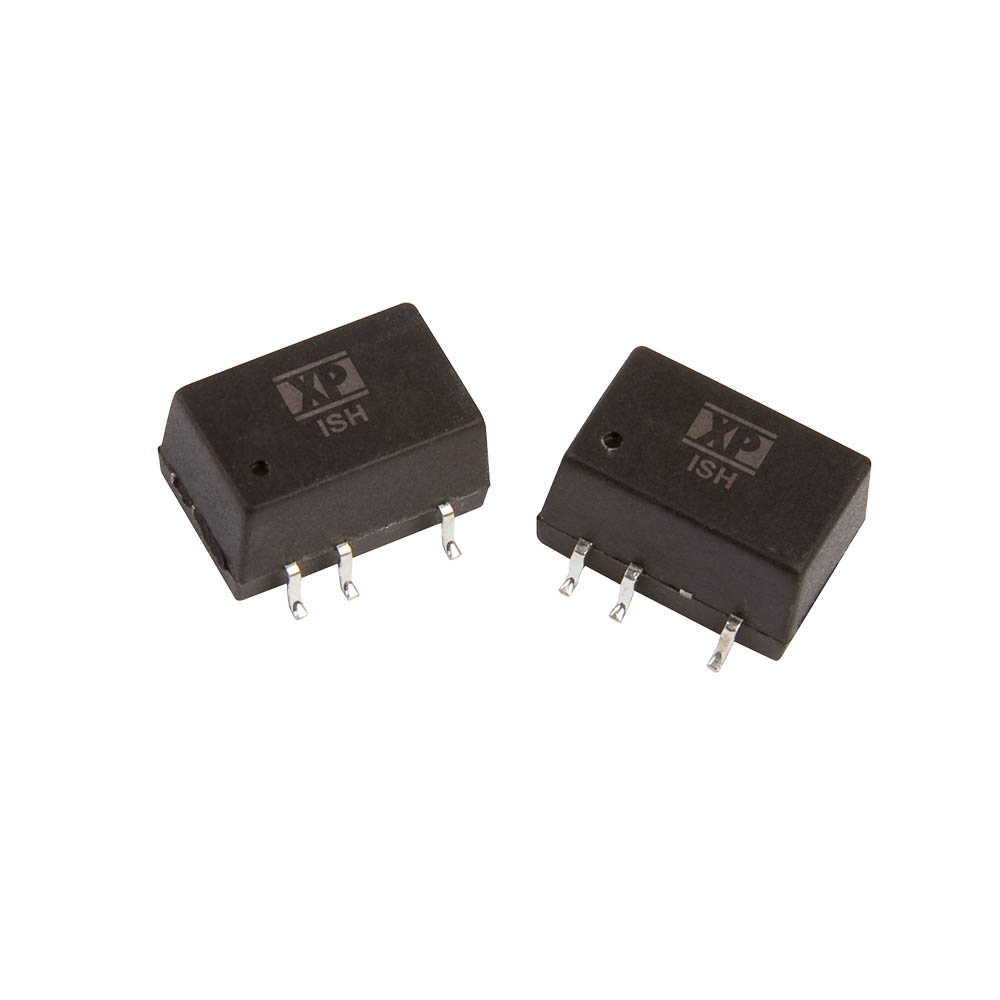

+ Click To Enlarge

Sample Request

2 Watts

  • Single Output
  • SMD Package
  • Industry Standard Pinout
  • Operating Temperature -40 °C to +105 °C
  • 1500 VDC Isolation, 3000 VDC Option
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISH0503A 4.5 to 5.5 Vdc 3.3 V / 0.4 A
2W Stock Check
ISH0505A 4.5 to 5.5 Vdc 5 V / 0.4 A
2W Stock Check
ISH0509A 4.5 to 5.5 Vdc 9 V / 0.222 A
2W Stock Check
ISH0512A 4.5 to 5.5 Vdc 12 V / 0.167 A
2W Stock Check
ISH0515A 4.5 to 5.5 Vdc 15 V / 0.133 A
2W Stock Check
ISH1205A 10.8 to 13.2 Vdc 5 V / 0.4 A
2W Stock Check
ISH1209A 10.8 to 13.2 Vdc 9 V / 0.222 A
2W Stock Check
ISH1212A 10.8 to 13.2 Vdc 12 V / 0.167 A
2W Stock Check
ISH1215A 10.8 to 13.2 Vdc 15 V / 0.133 A
2W Stock Check
ISH1224A 10.8 to 13.2 Vdc 24 V / 0.083 A
2W Stock Check
ISH1515A 13.5 to 16.5 Vdc 15 V / 0.133 A
2W Stock Check
ISH2405A 21.6 to 26.4 Vdc 5 V / 0.4 A
2W Stock Check
ISH2412A 21.6 to 26.4 Vdc 12 V / 0.167 A
2W Stock Check
ISH2415A 21.6 to 26.4 Vdc 15 V / 0.133 A
2W Stock Check
ISH2424A 21.6 to 26.4 Vdc 24 V / 0.083 A
2W Stock Check

Short Form Datasheet

  • Dimensions:
    ISH: 0.500 x 0.44 x 0.285 in (12.7 x 11.2 x 7.25 mm)
  • Input Voltage:
    4.5-5.5 VDC
    10.8-13.2 VDC
    13.5-16.5 VDC
    21.6-26.4 VDC
  • Efficiency:
    72-86%
  • Operating Temp:
    -40 °C to +105 °C
    Derate from 100% load at +100 °C to 80% load at 105 °C
  • Isolation:
    See Datasheet
