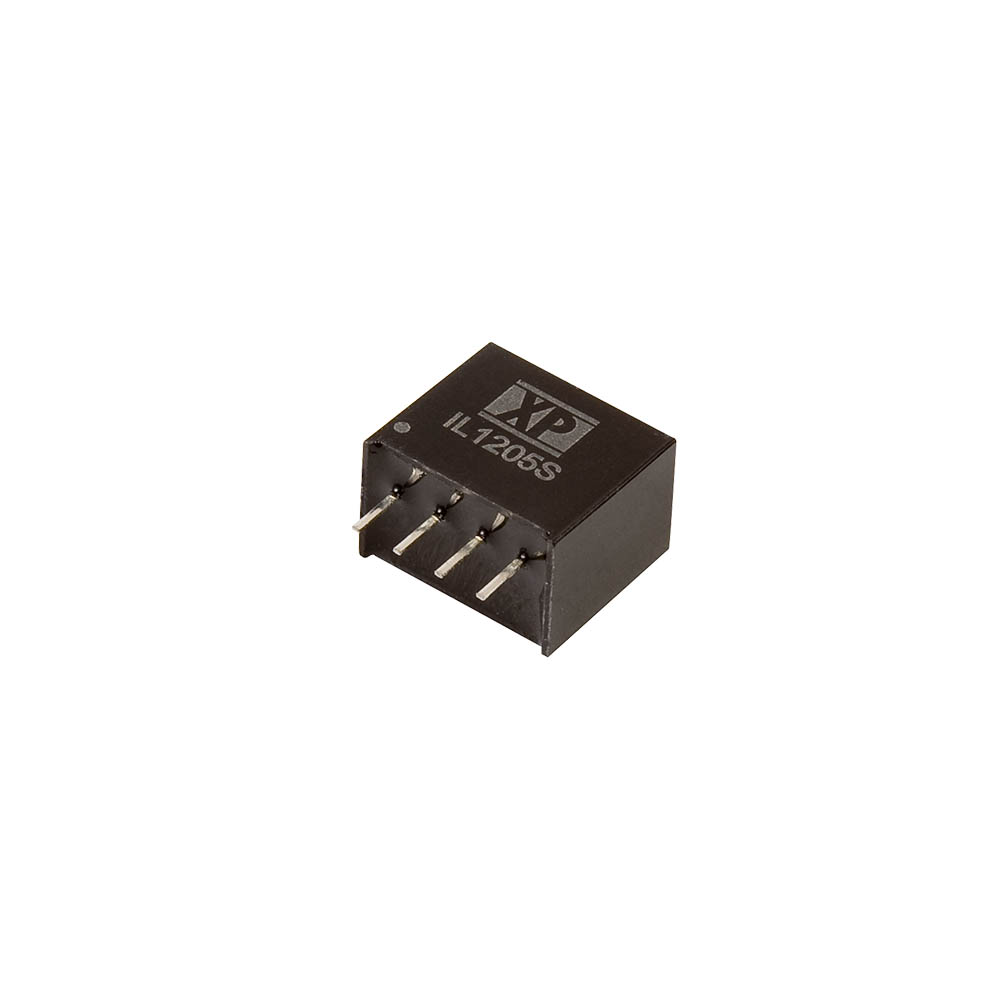

IL

+ Click To Enlarge

Sample Request

2 Watts

  • Single Output
  • SIP Package
  • 1000 VDC Isolation
  • Optional 3000 VDC Isolation
  • MTBF >1.2 MHrs
  • -40 °C to +85 °C Operation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IL0503S 4.5 to 5.5 Vdc 3.3 V / 0.4 A
2W Stock Check
IL0505S 4.5 to 5.5 Vdc 5 V / 0.4 A
2W Stock Check
IL0509S 4.5 to 5.5 Vdc 9 V / 0.222 A
2W Stock Check
IL0512S 4.5 to 5.5 Vdc 12 V / 0.168 A
2W Stock Check
IL0515S 4.5 to 5.5 Vdc 15 V / 0.132 A
2W Stock Check
IL0524S 4.5 to 5.5 Vdc 24 V / 0.084 A
2W Stock Check
IL1203S 10.8 to 13.2 Vdc 3.3 V / 0.4 A
2W Stock Check
IL1205S 10.8 to 13.2 Vdc 5 V / 0.4 A
2W Stock Check
IL1209S 10.8 to 13.2 Vdc 9 V / 0.222 A
2W Stock Check
IL1212S 10.8 to 13.2 Vdc 12 V / 0.168 A
2W Stock Check
IL1215S 10.8 to 13.2 Vdc 15 V / 0.132 A
2W Stock Check
IL1224S 10.8 to 13.2 Vdc 24 V / 0.084 A
2W Stock Check
IL2403S 21.6 to 26.4 Vdc 3.3 V / 0.4 A
2W Stock Check
IL2405S 21.6 to 26.4 Vdc 5 V / 0.4 A
2W Stock Check
IL2409S 21.6 to 26.4 Vdc 9 V / 0.222 A
2W Stock Check
IL2412S 21.6 to 26.4 Vdc 12 V / 0.168 A
2W Stock Check
IL2415S 21.6 to 26.4 Vdc 15 V / 0.132 A
2W Stock Check
IL2424S 21.6 to 26.4 Vdc 24 V / 0.084 A
2W Stock Check
IL4803S 43.2 to 52.8 Vdc 3.3 V / 0.4 A
2W Stock Check
IL4805S 43.2 to 52.8 Vdc 5 V / 0.4 A
2W Stock Check
IL4809S 43.2 to 52.8 Vdc 9 V / 0.222 A
2W Stock Check
IL4812S 43.2 to 52.8 Vdc 12 V / 0.168 A
2W Stock Check
IL4815S 43.2 to 52.8 Vdc 15 V / 0.132 A
2W Stock Check
IL4824S 43.2 to 52.8 Vdc 24 V / 0.084 A
2W Stock Check

Short Form Datasheet

  • Dimensions:
    IL: 0.46 x 0.29 x 0.4 in (11.68 x 7.5 x 10.16 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    71-84%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1000 VDC minimum
    (3000 VDC -H option)
