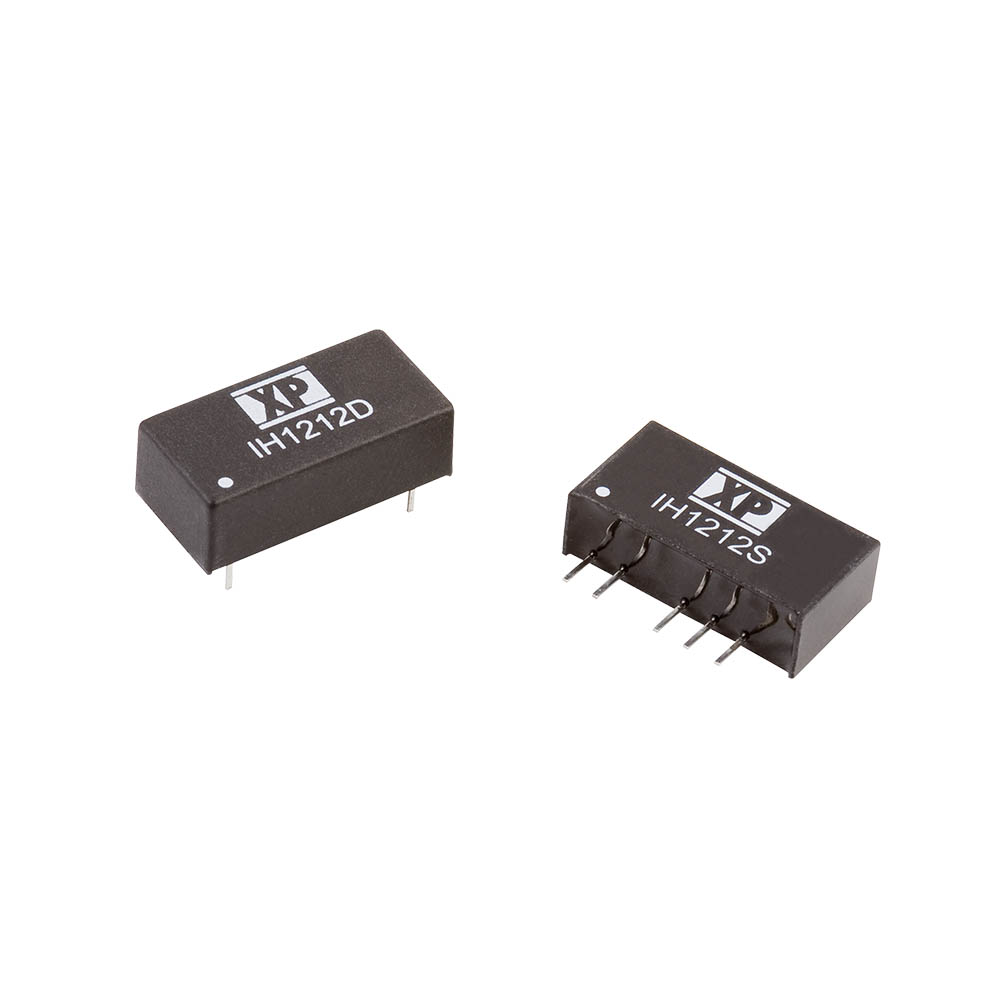

IH

+ Click To Enlarge

Sample Request

2 Watts

  • Dual Output
  • SIP or DIP Package
  • 1000 VDC Isolation
  • Optional 3000-6000 VDC Isolation
  • MTBF >1.1 MHrs
  • -40 °C to +85 °C Operation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IH0503S 4.5 to 5.5 Vdc 3.3 V / 0.2 A
-3.3 V / 0.2 A
2W Stock Check
IH0505S 4.5 to 5.5 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
IH0509S 4.5 to 5.5 Vdc 9 V / 0.111 A
-9 V / 0.111 A
2W Stock Check
IH0512S 4.5 to 5.5 Vdc 12 V / 0.084 A
-12 V / 0.084 A
2W Stock Check
IH0515S 4.5 to 5.5 Vdc 15 V / 0.066 A
-15 V / 0.066 A
2W Stock Check
IH0524S 4.5 to 5.5 Vdc 24 V / 0.042 A
-24 V / 0.042 A
2W Stock Check
IH1203S 10.8 to 13.2 Vdc 3.3 V / 0.2 A
-3.3 V / 0.2 A
2W Stock Check
IH1205S 10.8 to 13.2 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
IH1209S 10.8 to 13.2 Vdc 9 V / 0.111 A
-9 V / 0.111 A
2W Stock Check
IH1212S 10.8 to 13.2 Vdc 12 V / 0.084 A
-12 V / 0.084 A
2W Stock Check
IH1215S 10.8 to 13.2 Vdc 15 V / 0.066 A
-15 V / 0.066 A
2W Stock Check
IH1224S 10.8 to 13.2 Vdc 24 V / 0.042 A
-24 V / 0.042 A
2W Stock Check
IH2403S 21.6 to 26.4 Vdc 3.3 V / 0.2 A
-3.3 V / 0.2 A
2W Stock Check
IH2405S 21.6 to 26.4 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
IH2409S 21.6 to 26.4 Vdc 9 V / 0.111 A
-9 V / 0.111 A
2W Stock Check
IH2412S 21.6 to 26.4 Vdc 12 V / 0.084 A
-12 V / 0.084 A
2W Stock Check
IH2415S 21.6 to 26.4 Vdc 15 V / 0.066 A
-15 V / 0.066 A
2W Stock Check
IH2424S 21.6 to 26.4 Vdc 24 V / 0.042 A
-24 V / 0.042 A
2W Stock Check
IH4803S 43.2 to 52.8 Vdc 3.3 V / 0.2 A
-3.3 V / 0.2 A
2W Stock Check
IH4805S 43.2 to 52.8 Vdc 5 V / 0.2 A
-5 V / 0.2 A
2W Stock Check
IH4809S 43.2 to 52.8 Vdc 9 V / 0.111 A
-9 V / 0.111 A
2W Stock Check
IH4812S 43.2 to 52.8 Vdc 12 V / 0.084 A
-12 V / 0.084 A
2W Stock Check
IH4815S 43.2 to 52.8 Vdc 15 V / 0.066 A
-15 V / 0.066 A
2W Stock Check
IH4824S 43.2 to 52.8 Vdc 24 V / 0.042 A
-24 V / 0.042 A
2W Stock Check

Short Form Datasheet

  • Dimensions:
    IH SIP: 0.76 x 0.4 x 0.3 in (19.5 x 10.16 x 7.62 mm)
    IH DIP: 0.80 x 0.4 x 0.4 in (20.43 x 10.16 x 10.16 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    57-68%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1000 VDC
