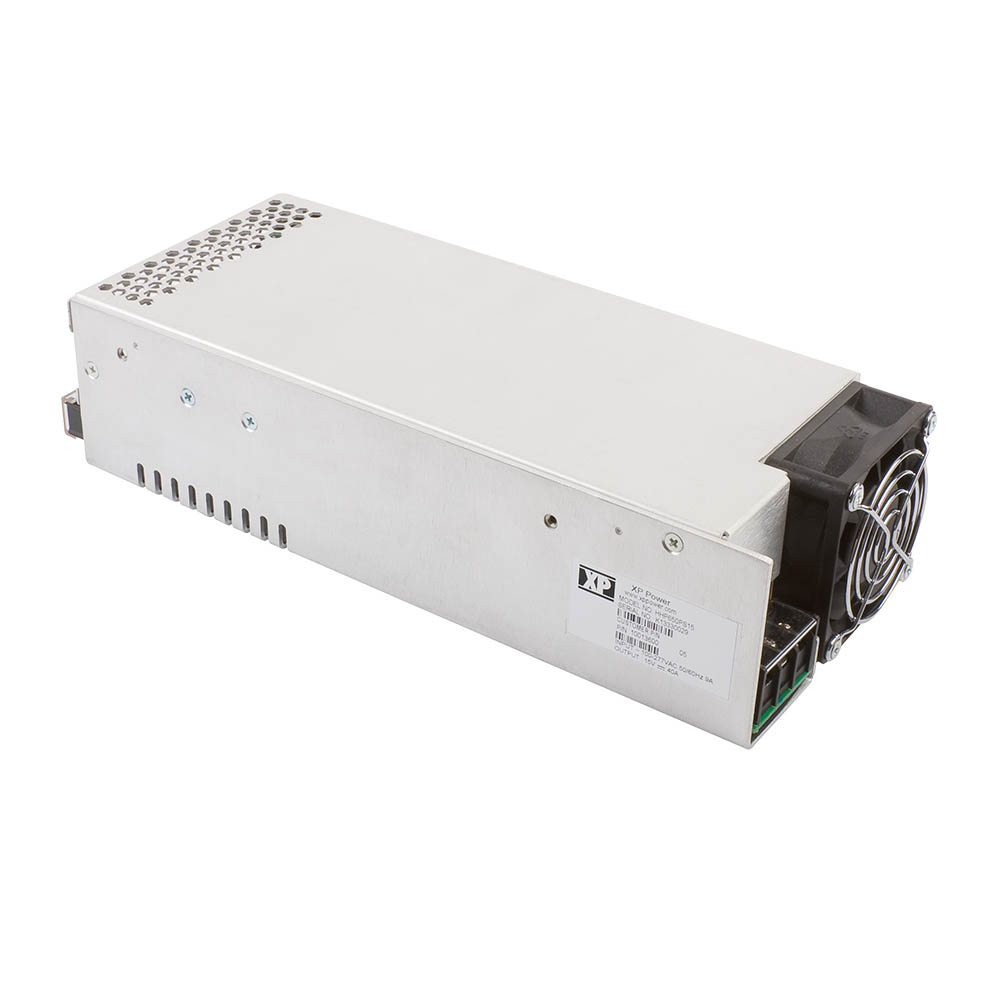

HHP650

+ Click To Enlarge

Sample Request

650 Watts

  • 85- 305 VAC Input
  • MIL STD 810F Shock & Vibration
  • -40 °C to +70 °C Operation
  • SEMI F47 Compliant
  • 6 kV Surge Rating IEEEStdC62.41
  • UL508, ANSI/ISA 12.12.01 Class I, Div II
  • Conformal Coating
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
HHP650PS12 85 to 305 Vac 12 V / 50 A
650W Stock Check
HHP650PS15 85 to 305 Vac 15 V / 40 A
650W Stock Check
HHP650PS24 85 to 305 Vac 24 V / 32.5 A
650W Stock Check
HHP650PS28 85 to 305 Vac 28 V / 27.9 A
650W Stock Check
HHP650PS36 85 to 305 Vac 36 V / 21.7 A
650W Stock Check
HHP650PS48 85 to 305 Vac 48 V / 16.3 A
650W Stock Check

Short Form Datasheet

  • Dimensions:
    HHP: 9.99 x 4.20 x 2.50 in (253.8 x 106.8 x 63.5 mm)
  • Input Voltage:
    85-305 VAC (see datasheet)
  • Harmonic Currents:
    EN61000-3-2 Class A
  • Efficiency:
    85% typical
  • Operating Temp:
    -40 °C to +70 °C. Refer to derating curves
  • Isolation:
    3000 VAC Input to Output
    2000 VAC Input to Ground
    500 VAC Output to Ground
  • Worldwide Safety Approvals:
    IEC60950-1:2005 + A1:2009
  • European Safety Approvals:
    EN60950-1 A12:2011, CE Mark LVD & RoHS
  • US Safety Approvals:
    UL60950-1 (2011), CSA 22.2 No.60950-1, UL508, CSA 22.2 No. 107.1-01, ANSI/ISA 12.12.01-2000
  • Other Safety Approvals:
    Equipment Protection Class I
  • EMC:
    EN55011/22 level B conducted
    EN55011/22 level A radiated
