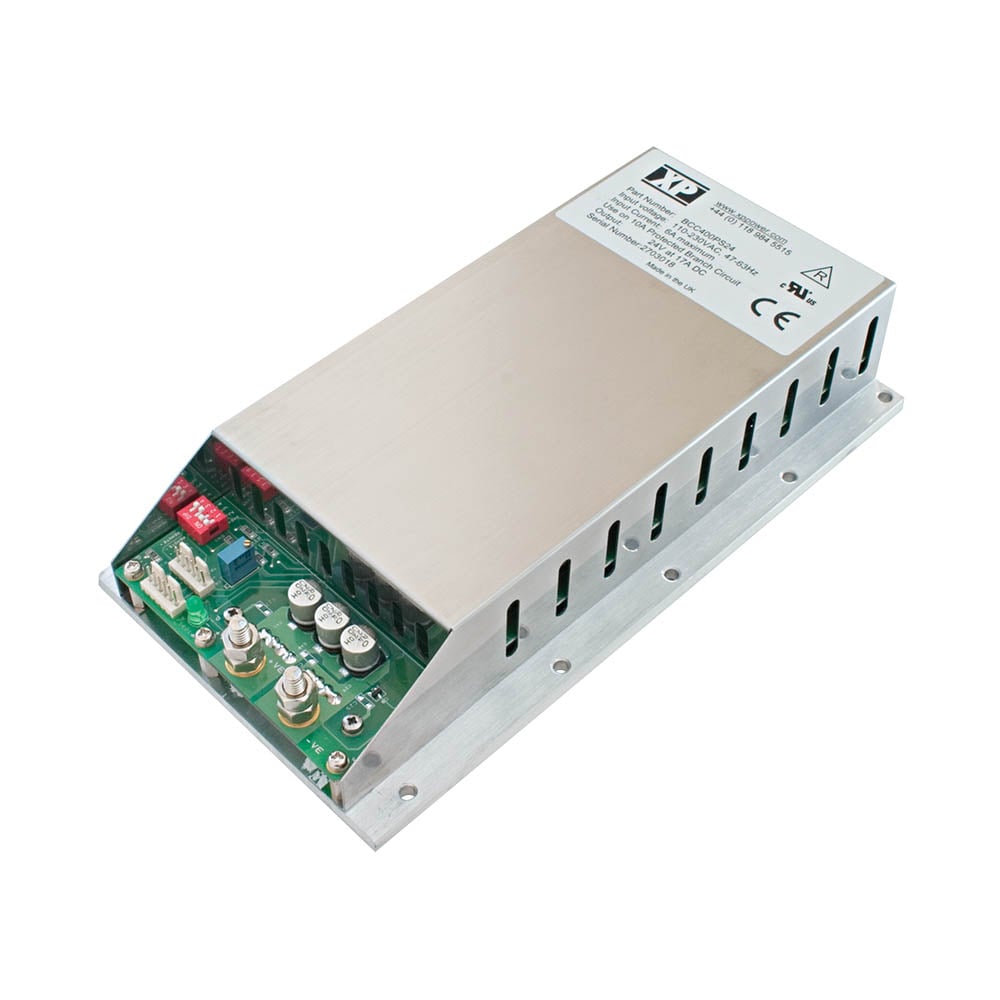

BCC

Sample Request

200-400 Watts

  • Baseplate-cooled
  • Wide Operating Temperature Range
  • ETSI, EMC and Environmental Compliant
  • Parallel Operation
  • Remote On/Off
  • Low Temperature Option
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
BCC200PS03 90 to 264 Vac 3.3 V / 50 A
200W Stock Check
BCC200PS05 90 to 264 Vac 5 V / 40 A
200W Stock Check
BCC200PS07 90 to 264 Vac 7.5 V / 28 A
200W Stock Check
BCC200PS12 90 to 264 Vac 12 V / 20 A
200W Stock Check
BCC400PS03 90 to 264 Vac 3.3 V / 80 A
400W Stock Check
BCC400PS05 90 to 264 Vac 5 V / 80 A
400W Stock Check
BCC400PS07 90 to 264 Vac 7.5 V / 54 A
400W Stock Check
BCC400PS12 90 to 264 Vac 12 V / 34 A
400W Stock Check
BCC400PS15 90 to 264 Vac 15 V / 27 A
400W Stock Check
BCC400PS18 90 to 264 Vac 18 V / 22 A
400W Stock Check
BCC400PS24 90 to 264 Vac 24 V / 17 A
400W Stock Check
BCC400PS28 90 to 264 Vac 28 V / 14.5 A
400W Stock Check

Short Form Datasheet

Long Form Datasheet

  • Dimensions:
    BCC: 9.21 x 4.96 x 1.90 in (234.0 x 126.0 x 48.5 mm)
  • Input Voltage:
    90-264 VAC
  • Harmonic Currents:
    EN61000-3-2, EN61000-3-3
  • Efficiency:
    80% typical
  • Operating Temp:
    -20 °C to +70 °C, with baseplate maintained below +83 °C utilizing system cooling, -40 °C option available - add suffix ‘-L’ to model number
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1, CE Mark LVD
  • US Safety Approvals:
    UL60950-1: CSA22.2 No. 60950-1-03
  • EMC:
    EN55022, level B conducted & level A radiated

CB Report

Declaration of Conformity - BCS75-100
