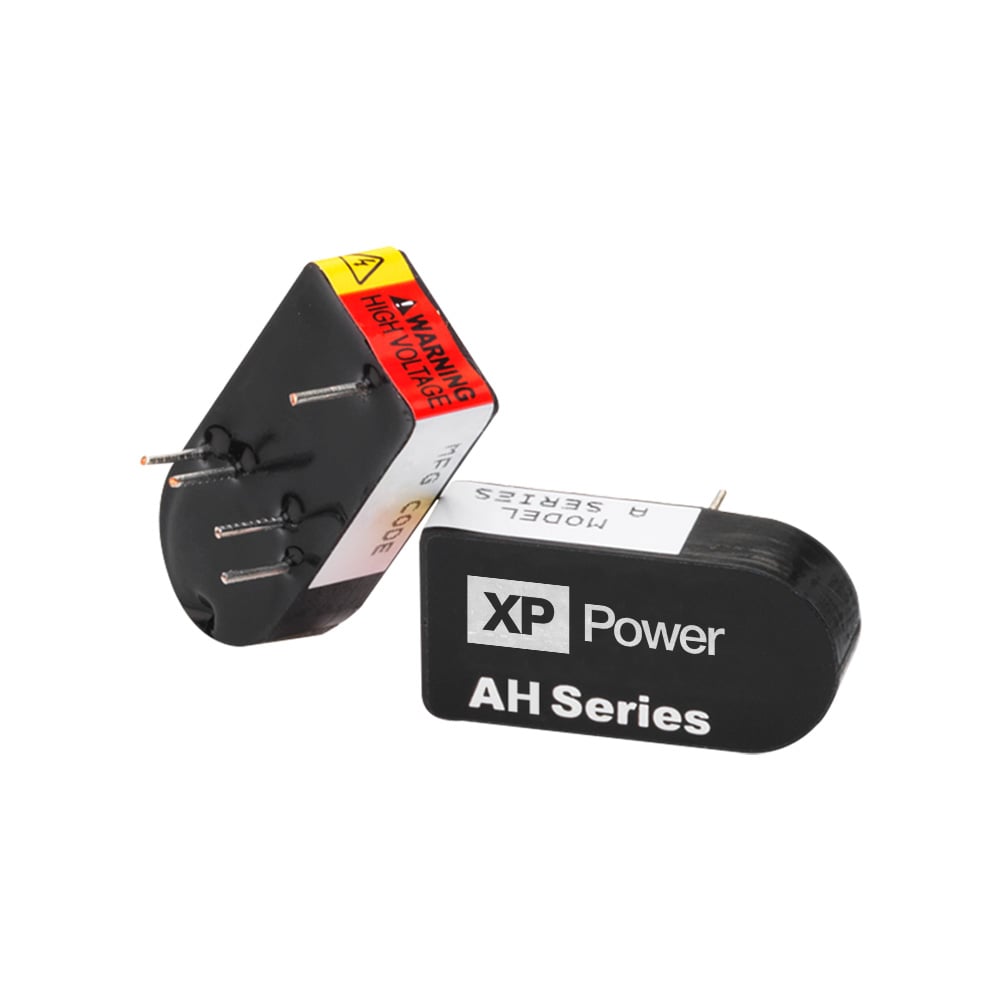

AH

+ Click To Enlarge

Sample Request

1.5 Watts

  • Isolated Output Voltage is Proportional to Input Voltage
  • Ultra-Miniature, Low Profile
  • Low Turn On Voltage: <0.7VDC
  • 100V to 6 kV Output Voltage
  • Positive or Negative
  • Very Low I/O Leakage Current
  • Reversible Polarity
  • Low Noise, Quasi-Sinewave Resonant Oscillator
  • MTBF>1.8 Million Hours
High Voltage Applications
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AH01N-12 0.7 to 12 Vdc 0 to -100 V / 0.015 A
1.5W Stock Check
AH01N-24 0.7 to 24 Vdc 0 to -100 V / 0.015 A
1.5W Stock Check
AH01P-12 0.7 to 12 Vdc 0 to +100 V / 0.015 A
1.5W Stock Check
AH01P-24 0.7 to 24 Vdc 0 to +100 V / 0.015 A
1.5W Stock Check
AH025N-12 0.7 to 12 Vdc 0 to -250 V / 0.006 A
1.5W Stock Check
AH025N-24 0.7 to 24 Vdc 0 to -250 V / 0.006 A
1.5W Stock Check
AH025N-5 0.7 to 5 Vdc 0 to -250 V / 0.006 A
1.5W Stock Check
AH025P-12 0.7 to 12 Vdc 0 to +250 V / 0.0065 A
1.5W Stock Check
AH025P-24 0.7 to 24 Vdc 0 to +250 V / 0.0065 A
1.5W Stock Check
AH025P-5 0.7 to 5 Vdc 0 to +250 V / 0.0065 A
1.5W Stock Check
AH02N-12 0.7 to 12 Vdc 0 to -200 V / 0.0075 A
1.5W Stock Check
AH02N-24 0.7 to 24 Vdc 0 to -200 V / 0.0075 A
1.5W Stock Check
AH02N-5 0.7 to 5 Vdc 0 to -200 V / 0.0075 A
1.5W Stock Check
AH02P-12 0.7 to 12 Vdc 0 to +200 V / 0.0075 A
1.5W Stock Check
AH02P-24 0.7 to 24 Vdc 0 to +200 V / 0.0075 A
1.5W Stock Check
AH02P-5 0.7 to 5 Vdc 0 to +200 V / 0.0075 A
1.5W Stock Check
AH03N-12 0.7 to 12 Vdc 0 to -300 V / 0.005 A
1.5W Stock Check
AH03N-24 0.7 to 24 Vdc 0 to -300 V / 0.005 A
1.5W Stock Check
AH03N-5 0.7 to 5 Vdc 0 to -300 V / 0.005 A
1.5W Stock Check
AH03P-12 0.7 to 12 Vdc 0 to +300 V / 0.005 A
1.5W Stock Check
AH03P-24 0.7 to 24 Vdc 0 to +300 V / 0.005 A
1.5W Stock Check
AH03P-5 0.7 to 5 Vdc 0 to +300 V / 0.005 A
1.5W Stock Check
AH04N-12 0.7 to 12 Vdc 0 to -400 V / 0.00375 A
1.5W Stock Check
AH04N-24 0.7 to 24 Vdc 0 to -400 V / 0.00375 A
1.5W Stock Check
AH04N-5 0.7 to 5 Vdc 0 to -400 V / 0.00375 A
1.5W Stock Check
AH04P-12 0.7 to 12 Vdc 0 to +400 V / 0.00375 A
1.5W Stock Check
AH04P-24 0.7 to 24 Vdc 0 to +400 V / 0.00375 A
1.5W Stock Check
AH04P-5 0.7 to 5 Vdc 0 to +400 V / 0.00375 A
1.5W Stock Check
AH05N-12 0.7 to 12 Vdc 0 to -500 V / 0.003 A
1.5W Stock Check
AH05N-24 0.7 to 24 Vdc 0 to -500 V / 0.003 A
1.5W Stock Check
AH05N-5 0.7 to 5 Vdc 0 to -500 V / 0.003 A
1.5W Stock Check
AH05P-12 0.7 to 12 Vdc 0 to +500 V / 0.003 A
1.5W Stock Check
AH05P-24 0.7 to 24 Vdc 0 to +500 V / 0.003 A
1.5W Stock Check
AH05P-5 0.7 to 5 Vdc 0 to +500 V / 0.003 A
1.5W Stock Check
AH06N-12 0.7 to 12 Vdc 0 to -600 V / 0.0025 A
1.5W Stock Check
AH06N-24 0.7 to 24 Vdc 0 to -600 V / 0.0025 A
1.5W Stock Check
AH06N-5 0.7 to 5 Vdc 0 to -600 V / 0.0025 A
1.5W Stock Check
AH06P-12 0.7 to 12 Vdc 0 to +600 V / 0.0025 A
1.5W Stock Check
AH06P-24 0.7 to 24 Vdc 0 to +600 V / 0.0025 A
1.5W Stock Check
AH06P-5 0.7 to 5 Vdc 0 to +600 V / 0.0025 A
1.5W Stock Check
AH07N-12 0.7 to 12 Vdc 0 to -700 V / 0.00215 A
1.5W Stock Check
AH07N-24 0.7 to 24 Vdc 0 to -700 V / 0.00215 A
1.5W Stock Check
AH07N-5 0.7 to 5 Vdc 0 to -700 V / 0.00215 A
1.5W Stock Check
AH07P-12 0.7 to 12 Vdc 0 to +700 V / 0.00125 A
1.5W Stock Check
AH07P-24 0.7 to 24 Vdc 0 to +700 V / 0.00125 A
1.5W Stock Check
AH07P-5 0.7 to 5 Vdc 0 to +700 V / 0.00125 A
1.5W Stock Check
AH08N-12 0.7 to 12 Vdc 0 to -800 V / 0.00187 A
1.5W Stock Check
AH08N-24 0.7 to 24 Vdc 0 to -800 V / 0.00187 A
1.5W Stock Check
AH08N-5 0.7 to 5 Vdc 0 to -800 V / 0.00187 A
1.5W Stock Check
AH08P-12 0.7 to 12 Vdc 0 to +800 V / 0.00187 A
1.5W Stock Check
AH08P-24 0.7 to 24 Vdc 0 to +800 V / 0.00187 A
1.5W Stock Check
AH08P-5 0.7 to 5 Vdc 0 to +800 V / 0.00187 A
1.5W Stock Check
AH09N-12 0.7 to 12 Vdc 0 to -900 V / 0.00167 A
1.5W Stock Check
AH09N-24 0.7 to 24 Vdc 0 to -900 V / 0.00167 A
1.5W Stock Check
AH09N-5 0.7 to 5 Vdc 0 to -900 V / 0.00167 A
1.5W Stock Check
AH09P-12 0.7 to 12 Vdc 0 to +900 V / 0.00167 A
1.5W Stock Check
AH09P-24 0.7 to 24 Vdc 0 to +900 V / 0.00167 A
1.5W Stock Check
AH09P-5 0.7 to 5 Vdc 0 to +900 V / 0.00167 A
1.5W Stock Check
AH10N-12 0.7 to 12 Vdc 0 to -1000 V / 0.0015 A
1.5W Stock Check
AH10N-24 0.7 to 24 Vdc 0 to -1000 V / 0.0015 A
1.5W Stock Check
AH10N-5 0.7 to 5 Vdc 0 to -1000 V / 0.0015 A
1.5W Stock Check
AH10P-12 0.7 to 12 Vdc 0 to +1000 V / 0.0015 A
1.5W Stock Check
AH10P-24 0.7 to 24 Vdc 0 to +1000 V / 0.0015 A
1.5W Stock Check
AH10P-5 0.7 to 5 Vdc 0 to +1000 V / 0.0015 A
1.5W Stock Check
AH12N-12 0.7 to 12 Vdc 0 to -1200 V / 0.00125 A
1.5W Stock Check
AH12N-24 0.7 to 24 Vdc 0 to -1200 V / 0.00125 A
1.5W Stock Check
AH12N-5 0.7 to 5 Vdc 0 to -1200 V / 0.00125 A
1.5W Stock Check
AH12P-12 0.7 to 12 Vdc 0 to +1200 V / 0.00125 A
1.5W Stock Check
AH12P-24 0.7 to 24 Vdc 0 to +1200 V / 0.00125 A
1.5W Stock Check
AH12P-5 0.7 to 5 Vdc 0 to +1200 V / 0.00125 A
1.5W Stock Check
AH15N-12 0.7 to 12 Vdc 0 to -1500 V / 0.001 A
1.5W Stock Check
AH15N-24 0.7 to 24 Vdc 0 to -1500 V / 0.001 A
1.5W Stock Check
AH15N-5 0.7 to 5 Vdc 0 to -1500 V / 0.001 A
1.5W Stock Check
AH15P-12 0.7 to 12 Vdc 0 to +1500 V / 0.001 A
1.5W Stock Check
AH15P-24 0.7 to 24 Vdc 0 to +1500 V / 0.001 A
1.5W Stock Check
AH15P-5 0.7 to 5 Vdc 0 to +1500 V / 0.001 A
1.5W Stock Check
AH20N-12 0.7 to 12 Vdc 0 to -2000 V / 0.00075 A
1.5W Stock Check
AH20N-24 0.7 to 24 Vdc 0 to -2000 V / 0.00075 A
1.5W Stock Check
AH20N-5 0.7 to 5 Vdc 0 to -2000 V / 0.00075 A
1.5W Stock Check
AH20P-12 0.7 to 12 Vdc 0 to +2000 V / 0.00075 A
1.5W Stock Check
AH20P-24 0.7 to 24 Vdc 0 to +2000 V / 0.00075 A
1.5W Stock Check
AH20P-5 0.7 to 5 Vdc 0 to +2000 V / 0.00075 A
1.5W Stock Check
AH30N-12 0.7 to 12 Vdc 0 to -3000 V / 0.0005 A
1.5W Stock Check
AH30N-24 0.7 to 24 Vdc 0 to -3000 V / 0.0005 A
1.5W Stock Check
AH30N-5 0.7 to 5 Vdc 0 to -3000 V / 0.0005 A
1.5W Stock Check
AH30P-12 AH30P-12 0 to +3000 V / 0.005 A
1.5W Stock Check
AH30P-24 0.7 to 24 Vdc 0 to +3000 V / 0.005 A
1.5W Stock Check
AH30P-5 0.7 to 5 Vdc 0 to +3000 V / 0.005 A
1.5W Stock Check
AH60N-5 0.7 to 5 Vdc 0 to -6000 V / 0.00025 A
1.5W Stock Check
AH60P-5 0.7 to 5 Vdc 0 to +6000 V / 0.00025 A
1.5W Stock Check

Short Form Datasheet

  • Dimensions:
    A01-A20 (100V-2kV): 0.92 x 0.45 x x 0.25 in (23.37 x 11.43 x 6.35 mm)
    A30-A50 (3kV-5kV): 1.129 x 0.45 x 0.25 in (28.69 x 11.43 x 6.35 mm)
    A60 (6kV): 1.33 x 0.45 x 0.25 in (33.78 x 11.43 x 0.25 mm)
  • Input Voltage:
    5 VDC, 12 VDC or 24 VDC (5V for models over 3kV)
  • Operating Temp:
    -25°C to +75°C Standard  (-55°C to 85°C Extended) - CASE
  • Isolation:
    Input to Output Galvanic Isolation  < ± 500V BIAS on pin 4
  • Worldwide Safety Approvals:
    IEC 60950-1
  • European Safety Approvals:
    EN60950-1:2006+A1+A11+A12
  • US Safety Approvals:
    UL/UL 60950-1, CSA C22.2 NO. 60950-1-07

Declaration of Conformity

CB Certificate
